ATV Winch Rocker Switch with LED: Functions, Advantages, and Applications

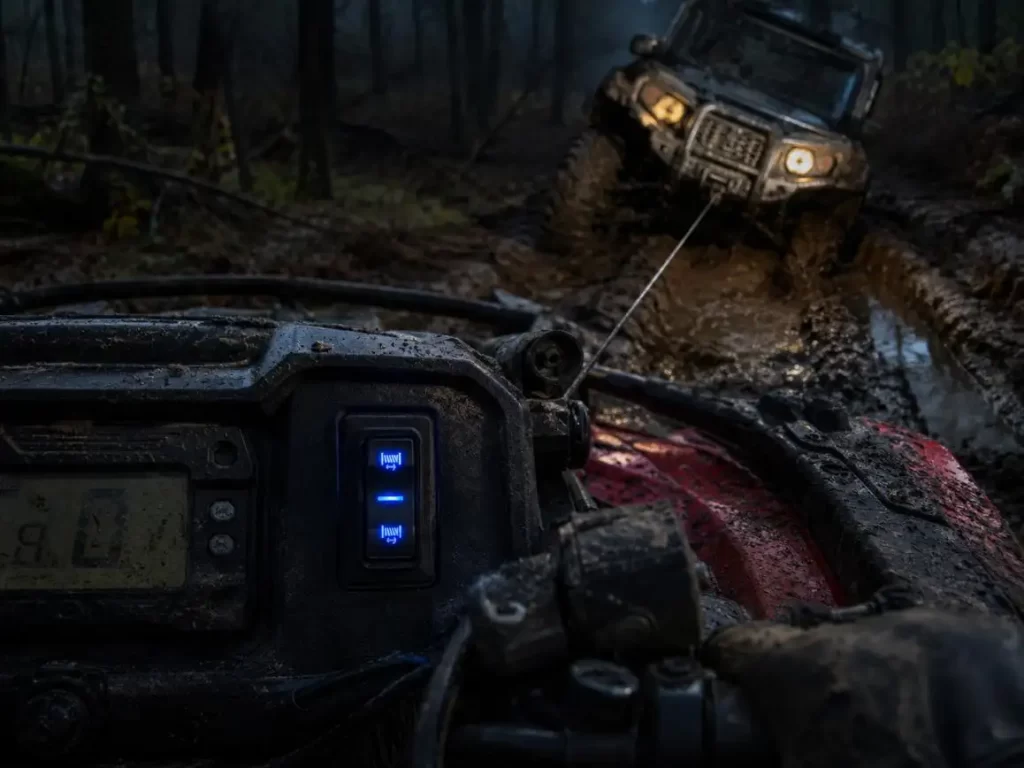

ATV winches assist vehicles in mud, forests, steep climbs, snow, and other low visibility and recovery situations. In these scenarios, the control switch should be simple to identify, use, and built into the vehicle's electrical systems.

When used in an ATV, the illuminated Winch Rocker Switch helps the user find the control and shows the difference between winch controls that pull the cable in (IN) and pay the cable out (OUT). Still, illuminated LEDs are just one of the many specifications. In determining the right switch, buyers should consider the operating voltage, type of switch, terminal configuration, dimensions of switch and panel, degree of sealing, and compatibility to the winch's contactor or relay.

The purpose of this document is to provide the main features and advantages of an LED ATV Winch Rocker Switch and where the user should buy it.

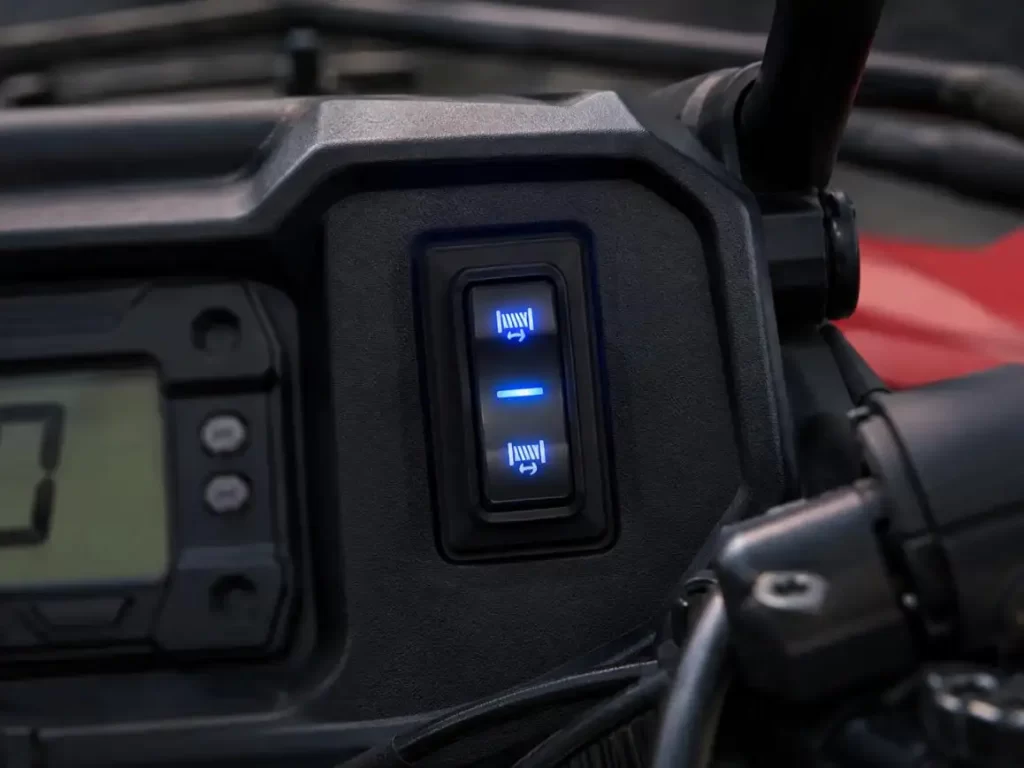

What is an ATV Winch Rocker Switch with LED?

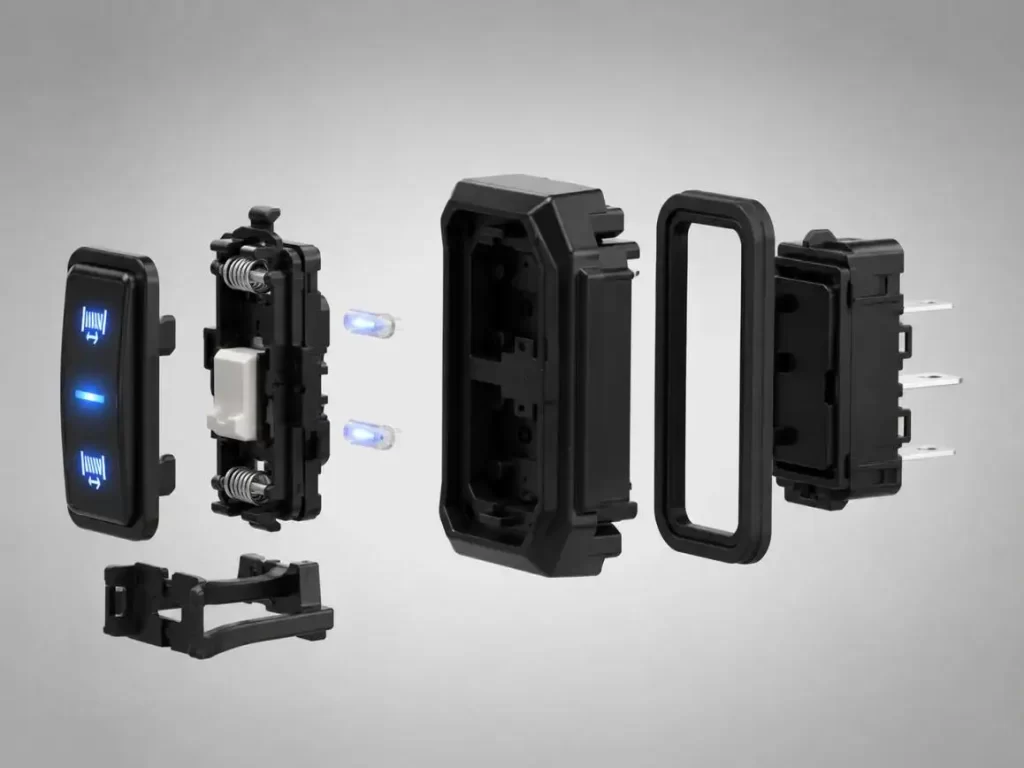

ATV Winch Rocker Switches are control devices to operate the IN and OUT functions of an electric winch. A typical switch contains the following:

•Winch Direction Control: A rocker type switching device.

•Automatic Reset: A momentary type switch with the center position as OFF.

•Low-light Backlighting: An LED that lights up the control symbol/text switch.

•Control Circuit Indicator: An LED that indicates the control circuit is powered and/or active.

•Control Terminals: Terminals provided to complete the winch control circuit and to provide power and ground.

Housing and clips: Secure the switch inside a dashboard cutout.

Most ATV winch switches operate in a low-current control circuit connected to a contactor, relay, or solenoid. They should not normally carry the high current required directly by the winch motor.

Key Features of an LED ATV Winch Rocker Switch

Momentary IN–OFF–OUT Control

A common ATV Winch Rocker Switch uses a three-position momentary configuration:

•Press upward to reel the cable IN.

•Release the switch to return to OFF.

•Press downward to feed the cable OUT.

•Release again to stop movement.

This spring-return design allows the operator to control cable movement in short intervals and reduces the chance of the winch continuing to run after the switch is released.

Status Indicators and Backlighting with LEDs

The use of LEDs in push button operators can vary with the design of the switch.

In general, the backlighting LED will display the winch icon with the vehicle ignition or dash lights on. The indicator LED will light when the switch is pressed or when the control circuit is activated.

LED color options may include blue, red, green, amber, or white. The selected color and brightness should match the vehicle dashboard and remain visible without creating excessive glare.

Panel-Mount Housing

Most products use a rectangular snap-in housing. Side clips hold the switch in a dashboard or control-panel opening, allowing straightforward installation and replacement.

The panel cutout, mounting depth, housing dimensions, and clip position should be confirmed before sampling because visually similar switches may not fit the same opening.

Sealed Construction

A waterproof or splash-resistant ATV Winch Rocker Switch may include:

•Sealed rocker surfaces

•Internal dust protection

•Terminal covers

•Waterproof connectors

•Gaskets or protective boots

Front-panel protection alone may not protect exposed terminals behind the dashboard. The full installation should be reviewed for mud, rain, vibration, and pressure-washing conditions.

Main Benefits of the ATV Winch Rocker Switch with LED

Some key benefits of the ATV Winch Rocker Switch with LED include:

•Better Seeing: LED designs help in dark and low light situations.

•Increased Speed: Lessens the need to search for the remote since the switch is the only control on the dashboard.

•Control the Motion: Lets the operator stop the winch at any position on the spool.

•Modern Appearance: Simple to integrate in the ATVs and UTVs control panels.

•Custom made: LEDs can be designed in different styles and different colors of housings.

•Versatile: Switch can control contactors, relays, solenoids, or vehicle control modules.

LEDs help to draw attention to and identify the status of the switch, but will not increase the pulling capacity of the winch or the efficiency of the motor.

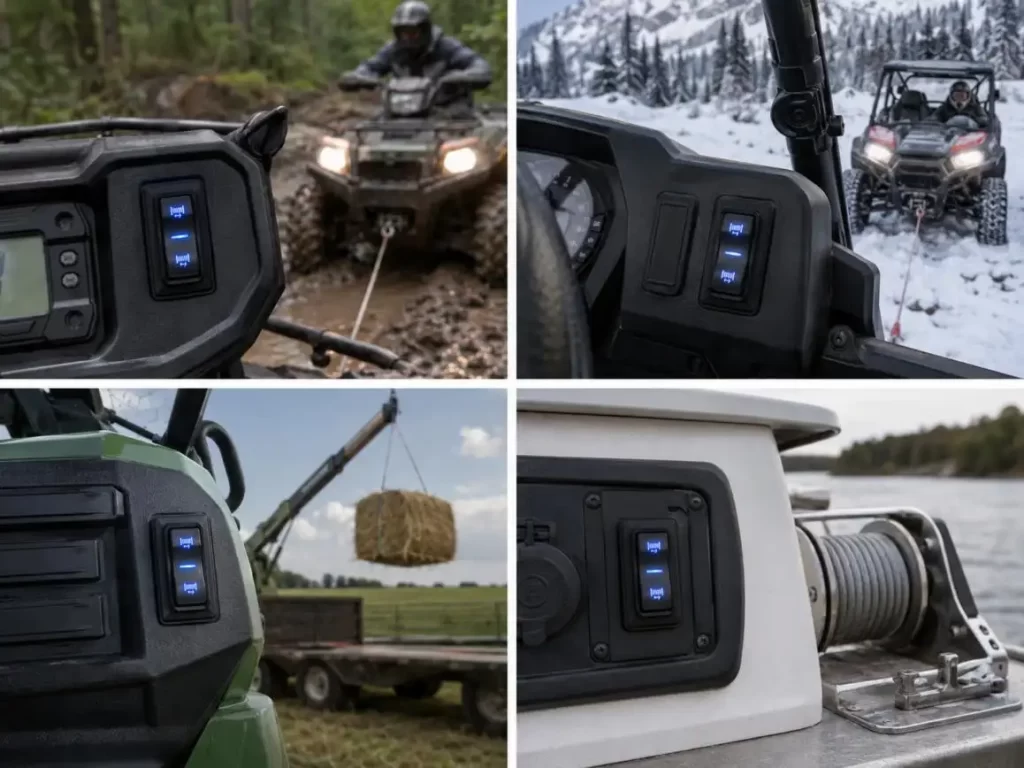

Typical Applications

The ATV Winch Rocker Switch is commonly used in:

•All-terrain vehicles

•Utility task vehicles

•Side-by-side vehicles

•Off-road recovery vehicles

•Agricultural utility vehicles

•Snow plow control systems

•Trailer winches

•Marine and outdoor control panels

Similar rocker switches may also control hydraulic systems, lifting mechanisms, electric actuators, or small recovery equipment. The electrical circuit, terminal definition, switching logic, and rated load must still be confirmed for each application.

ATV Winch Control Options

Control Type	Main Advantage	Limitation	Suitable Application
LED Rocker Switch	Fixed, visible, direct operation	Requires panel opening and wiring	Daily ATV and UTV use
Non-LED Rocker Switch	Simple structure	Difficult to identify at night	Basic equipment
Wired Handheld Remote	Allows external operation	Cable may tangle or wear	Close-range recovery
Wireless Remote	Flexible operating distance	Depends on battery and signal	External recovery work
Toggle Switch	Compact and economical	Direction may be less obvious	Simple control panels

No single option is suitable for every vehicle. Some systems combine an ATV Winch Rocker Switch with a wireless remote to provide both dashboard and external control.

Specifications Within the Same Switch Type

Specification	Common Options	Purchasing Importance
Operating Voltage	12V, 24V	Must match vehicle system
Switching Function	Momentary, maintained	Winches typically require momentary
Contact Configuration	DPDT, custom circuit	Defines IN/OUT logic
LED Type	Backlight, indicator, dual LED	Defines lighting function
Terminal Type	Blade, wire lead, connector	Affects assembly and service
Housing Material	ABS, PA engineering plastic	Affects heat and impact resistance
Protection	Splash resistant, sealed	Affects suitability for outdoor use
Marking	Printing, laser etching	Affects marking durability
Mechanical Life	Depends on test	Affects long-term reliability

The selection of the ATV Winch Rocker Switch should consider the wiring configuration, panel cutout, the environment, and the expected frequency of operation.

Frequent Errors in Selection and Customization

Some of the frequent errors in selection are:

❌Selecting LED in a color as long as the operating voltage is confirmed (not checked)

❌Directly connecting the switch to the winch motor (high current)

❌Mistaking momentary for maintained switching

❌Ignoring panel cutout and mounting depth

❌Protecting the switch front surface and leaving terminals exposed

❌Selecting LED brightness contrary to the brightness of the dashboard

❌Neglecting the vibration, temperature, mud, and water tests

❌Accepting a sample as a prototype instead of production sample

The main result of the above errors is poor fit, poor illumination, wiring errors, operation errors, premature failure, and high maintainability.

How Hanxia Supports Custom ATV Winch Rocker Switch Projects

Customized specifications: Custom ATV Winch Rocker Switch can be designed as per the required panel cutout and terminal layout. Logic of switching, icons, LED and housing can also be designed as per requirements.

✅Product development: Structural design and assistance in development of tools, prototypes and samples for mass production can be provided.

✅Automated Manufacturing: Systems for assembly, inspection and functional testing will help achieve consistent batches.

✅Quality Inspection: Inspect the movement of the rocker, automatic return, terminal continuity, and LED operation as well as the dimensions and finish.

✅Manufacturing capacity: Founded in 2014, Hanxia has more than 90 employees and several automated production lines located in a 5,600 square meter facility.

✅Quality and compliance: Hanxia's Quality Management System is ISO 9001 certified. Compliance documentation for CE, REACH, and RoHS 2.0 may be provided upon request for applicable products.

Final specifications and certification scope are subject to the latest project documentation.

Build the Switch Around the Complete Winch System

Although the integration of an LED ATV Winch Rocker Switch intends to enhance the visibility and the ease of use and integration, the switch must be designed to be compatible with the entire system of both the electrical and mechanical components.

Before you request samples, tell Hanxia the operating voltage of the vehicle, supply a wiring diagram along with a cutout of the panel, and specify terminals, LEDs, icons, operating conditions, and the estimated order quantity. The specifications for the ATV Winch Rocker Switch can be set to allow the design and testing of the switch, the lights, and the installation and circuitry, thereby ensuring batch consistency for production.

FAQs

Q1. What is an ATV Winch Rocker Switch?

An ATV Winch Rocker Switch allows operators to control the IN and OUT functions of an ATV or UTV winch from a mounted position on the equipment.

Q2. How do the LEDs on ATV Winch Rocker Switches work?

LEDs will often light up to indicate the symbol on the switch, display the state of the circuit, or show the switch's state when the circuit is closed, depending on the design of the wiring.

Q3. Are ATV Winch Rocker Switches momentary?

Typically, the switch is a momentary design that uses an IN–OFF–OUT configuration and automatically returns to the center position when released.

Q4. Is it common for the switch to connect directly to the winch motor?

Typically not. An ATV Winch Rocker Switch is typically designed to control a contactor, relay, or solenoid, and is not intended to carry the full current of the winch motor.

Q5. What are the standard voltage options?

The standard operating voltages are 12V and 24V. The voltage of the switch and the LED circuit must be compatible with the vehicle's electrical system.
