16mm: The Standard Size For Modern Push Button Switches
If you have worked with industrial controls, commercial appliances, or human-machine interfaces, you have encountered a 16mm Push Button Switch. This specific panel cutout size appears across control cabinets, public kiosks, medical equipment, and EV charging stations. The reason is not random. 16mm has emerged as the practical balance between ergonomic usability and panel space efficiency.
This article explains how the 16mm Push Button Switch category developed, what specifications actually matter when selecting one, and why manufacturers continue to standardize around this form factor. HANXIA, a manufacturer produces multiple 16mm series that meet current industrial requirements.
Physical and Mechanical Characteristics
A 16mm Push Button Switch refers primarily to the mounting hole diameter. The actual actuator may measure 18mm to 22mm across the button face, depending on bezel design. This behavior enables fairer product comparisons.
Common mechanical specifications include:
• Panel thickness: Most 16mm switches are designed to fit panels from 1mm to 6mm thick. You must check whether thread length corresponds to the specific panel gauge. Otherwise, you should not purchase the product.
• Operating force: Typical measurements lie within 300 to 800 grams. Lower force switches are for more frequent use, while higher would be used for the opposite.
• Travel distance: Most designs are generally within a range of 2 to 3.5mm of total travel. A smaller travel distance facilitates a faster actuation, while a greater distance may aid in tactile feedback.
• Mounting style: The design is usually a threaded bushing with a rear nut. Certain designs may include an anti-rotation feature, which is used to combat the switch from spinning during use.
16mm switches are able to be used for both momentary and maintained functions. Momentary designs are able to return to their resting position after the switch is released, while maintained designs are not. Each design is available within the same footprint.
Contact Ratings and Electrical Specifications
Knowing the electrical ratings ensures that the component lasts a reasonable amount of time and works reliably. A 16mm Push Button Switch is generally for low-voltage and low-current applications, yet it is possible to find variants, as there are for higher loads.
The standard electrical specifications include:
• Contact configuration: The most common is the SPST. If you're dealing with more complicated circuits, an SPDT and more complicated designs, an SPDT are also available.
• Voltage rating: Many 16mm switches are rated between 12 to 24V DC and some rated switches even handle 250V AC. Ratings should be checked for suitable applications.
• Current rating: Common values are from 1 to 5 A. If application is for below 100 mA logic circuitry, gold plated contacts are suggested to minimize the contacts’ oxidation.
• Contact material: Higher current capacity is applicable to silver contacts. Gold plating is vital for low current circuits to ensure the switch closure resistance remains even.
In applications with low voltage and low current (commonly referred to as dry circuits), the contact material state are critical. For instance, a 16mm Push Button Switch with a well designed gold plating will be reliable over a lengthy lifespan, while the same switch having normal silver contacts is likely to become oxidized and fail to conduct.
Environmental Protection Levels
Among 16mm switches, sealing is the leading feature of concern. Protection from the elements is of utmost necessity for equipment located outdoors and equipment used in environments such as food processing.
The characteristics of 16mm Push Button Switch are assessed against the IP ratings.
• IP40: Protection from tools larger than one mm. Not suitable for environments with water, dust and large particles. Ideal for dry, clean, and indoor environments like a control panel.
• IP65: Protection from low-pressure water and dust. For general industry use, especially where water and steam cleaning is frequent.
• IP67: Total immersion protection. Required for outdoor use, marine applications and where frequent cleaning occurs with hoses.
• IP69K: High-pressure and steam cleaning. This is used in food processing and heavy-duty vehicular applications.
Sealing is achieved through rubber O-rings at the bushing, rubber gaskets behind the bezel, and sealed internal contact blocks. A properly sealed 16mm Push Button Switch can operate reliably for years in wet or dusty conditions.

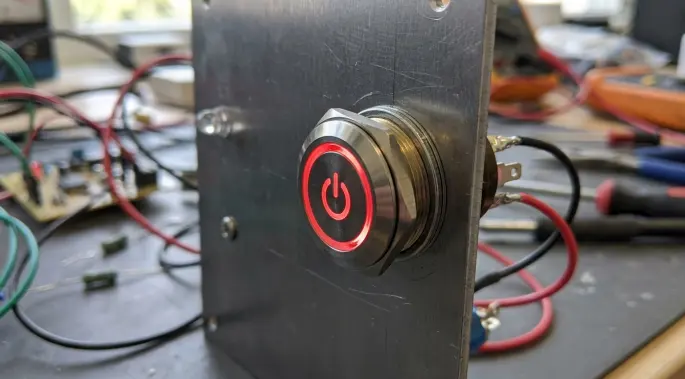

Illumination Options and Power Consumption
Most 16mm switches already incorporate built-in illumination. This is especially useful for locating control systems in low-light environments, as well as providing visual indications of the state of the system.
General illumination specifications:
• LED types: Of the listed types below, Red, green, yellow, blue, and white are the most common. Applications with more than 1 signaling state may also use bicolor and RGB LEDs.
• Voltage: An LED’s operating voltage can be as low as 6V, 12V, or as high as 24V DC. Built-in resistors of the LEDs allow direct connections to common control voltage.
• Power consumption: LED's at their rated voltage are rated to draw 10mA to 20mA of power. This should be considered negligible to systems.
• Lens material: Transparent polycarbonate or acrylic lens will display the LED coloring, while Translucent lenses will evenly diffuse the light across the face of the actuator.
For illuminated 16mm switches, an additional terminal is needed for the LED connection. Non-illuminated versions use two terminals. Usually, illuminated versions use a total of four terminals: two are used for the switch contacts and the remaining two are used for the LED.
Best Practice Guide to Installation
When a 16mm Push Button Switch is positioned correctly, it provides mechanical protection and works effectively. The order of the installation is simple and has minimal variations.
• Prepare panel: A 16mm hole is drilled or punched. Burrs or jagged edges can damage the housing or the seal.
• Insert switch: From the front of the panel, push the threaded bushing through the hole. The actuator needs to be facing the one operating the switch.
• Nut: Thread the mounting nut behind the panel to the bushing. A standard nut driver or wrench can be used to do this.
Nuts can be overtightened, which strips the threading. This can also crack the plastic bezels on the switches. For cracks, nuts need to be tight enough that the switch doesn’t rotate.
• Connect: Use the proper wire strippers stated on the data sheet. Strip wires to the correct amount and insert them into the screw terminals or push on connectors, as stated. Use the right polarity for illuminated versions.
• Testing: Actuating it multiple times should be possible. Check that the mounting nut is still tight and the switch has smooth travel and definite switching action.
A switch should not be pressed right on the bushing. This can cause it to rotate.
A Switch May Also be Nuilt Heavily
Switches that do last the longest are the built to function, the 16mm Push Button Switch.
• Contact oxidation: Plays a role in intermittent current applications. The switch is not conducting.
• Mechanical wear: Springs lose elasticity or plastic guides disintegrate after repeated cycles. You may feel looseness in the switch or observe the difficulty in returning the switch to its rest position.
• Seal failure: Rubber gasketing inevitably hardens or begins to crumble. Internal corrosive moisture, once within, causes destruction to contacts or malfunctions, typically, unwanted shorting.
• Terminal damage: Improper wire insertion or over-torquing of screw terminals. The reliability of this connection is almost nonexistent.
Controlling the materials and assembly processes when sourcing a 16mm Push Button Switch minimizes these risks. For these low-energy applications, HANXIA will specify a gold plate, use a wear-resistant actuator guide, and perform a seal integrity test as part of the manufacturing process.
Choosing the Right 16mm Switch for Your Application
There are many options to choose a 16mm switch. That's why we have simplified the process. Take a look at these questions. Then feel free to reference the data sheets.
• How thick of a panel do you need to mount through the switch? Check thread length.
• What voltage and current do you need to switch? Do you need a gold or silver contact?
• Do you need to use the switch in an outdoor or wet environment? Check to see if it meets IP65, IP67, or IP69K specifications.
• Do you want to get feedback from the switch? Consider the tactile feel and the force to switch.
• Do you need an indicator light? Select LED color and voltage.
• What is the expected number of operations over the equipment lifetime? Compare mechanical life ratings.
A 16mm Push Button Switch that matches all application parameters will outlast the equipment it controls. A mismatch—such as a non-sealed switch in a wet environment or silver contacts in a low-energy circuit—will cause early failure regardless of the brand.
Why HANXIA Manufactures 16mm Switches for Current Applications
HANXIA produces 16mm Push Button Switch series with illuminated/non-illuminated versions, momentary/maintained actions, and IP40-IP67 sealing. With 8 years of experience, CE, REACH, ROHS2.0 certifications, HANXIA has served 3,625+ enterprises. Daily capacity: 2 million units. Lead time: 2-6 working days. All switches share a consistent 16mm mounting hole. After-sales: 90-day no-reason return and on-site engineering support. Competitive pricing and professional service are standard.
CTA
Detailed specifications, dimensional drawings, and electrical ratings for each 16mm Push Button Switch variant are available at www.hx-switch.eu. Buyers can compare options, download datasheets, and request samples for qualification testing.
FAQ
Q: Can a 16mm Push Button Switch fit the same hole as Switches from other brands in a panel?
A: Yes, the 16mm panel opening is a global standard. HANXIA Switches are able to fit in a pre-existing panel cutout with no changes.
Q: What are the lead times for the HANXIA 16mm Switches?
A: Orders are shipped usually shipped in the 1-6 days and we produce in amounts of up to 2 million switches each day.
Q: Can HANXIA 16mm switches be used outdoors?
A: Yes. They hold an IP67 rating, therefore, they are dust-tight and can go under water. IP65 switches allow water in the form of jets to break through.
Q: What accreditations are held by HANXIA 16mm switches?
A: CE, REACH, ROHS2.0, and the utility Patent. Materials are compliant with International Environmental standards.
Q: I got switches that I no longer Want. Can I send them back?
A: Yes, we have a no reason 90-day return policy. We have engineering support, also.
