Product Description

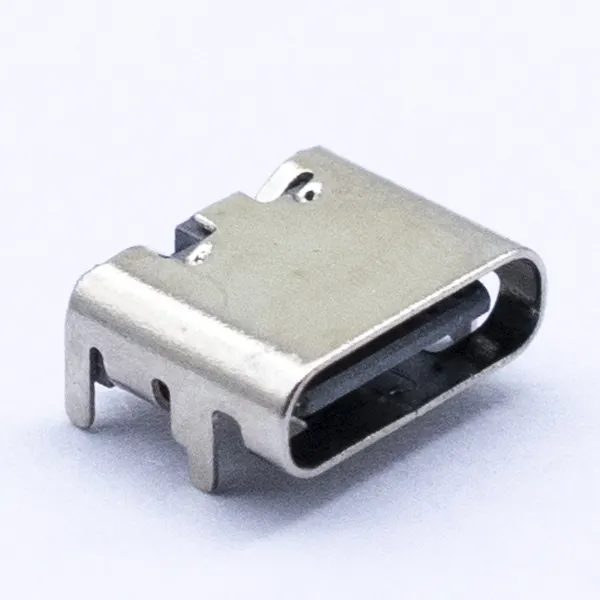

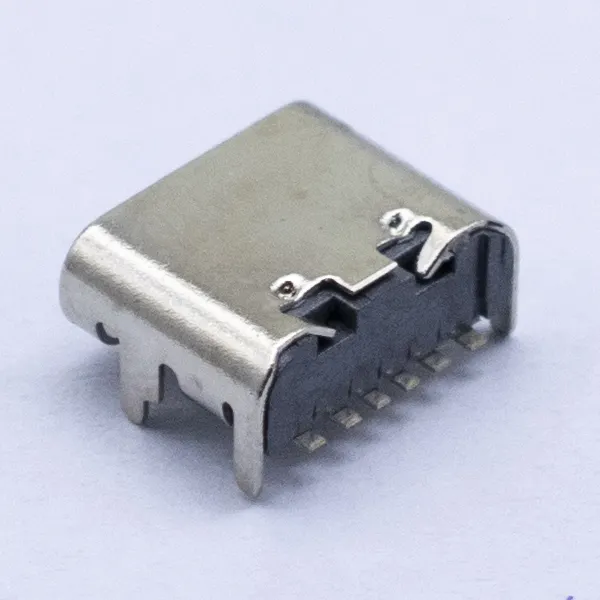

This 6‑pin USB‑C (Type‑C) receptacle is designed for charging‑only applications. It brings out VBUS×2, GND×2, and CC1/CC2 for proper plug orientation, current advertisement (Default/1.5 A/3 A), and optional USB Power Delivery negotiation to higher voltages and currents. No data pins (D+/D−, SS, SBU) are present, improving robustness and simplifying PCB layout. A reinforced metal shell with multiple ground tabs and through‑hole stakes provides high mechanical retention and a low‑impedance path to chassis for EMI/ESD control. Gold‑plated contacts ensure low resistance and long service life. Available in right‑angle SMT with shell stakes, vertical THT, and mid‑mount options; panel gasket and dust cap are available for system‑level sealing.
Key features:
- 6‑pin, charging‑only pinout: VBUS×2, GND×2, CC1, CC2
- 5 V default; up to 20 V/5 A with PD (system controller required)
- High retention metal shell; 10,000+ mating cycles
- Multiple shell grounds; robust EMI/ESD performance
- Wide operating temperature; vibration‑resistant structure
- Assembly‑friendly: SMT reflow, THT, and mid‑mount variants
Typical specifications (verify per datasheet):
- Voltage: 5 V default; up to 20 V with PD
- Current: 3 A standard; 5 A high‑current variant (requires e‑marked 5 A cable)
- Contact resistance: ≤30 mΩ (power), ≤50 mΩ (CC)
- Insulation resistance: ≥100 MΩ; dielectric withstand ≥100 VAC, 1 min
- Mating life: 10,000 cycles typical
- Operating temperature: −40 to +85 °C (−40 to +105 °C optional)
- Materials: UL94V‑0, halogen‑free housing; hard‑gold contacts; RoHS/REACH compliant
Applications:
- Charging ports in consumer electronics and smart home devices
- Docks, cradles, handheld terminals, scanners, labelers
- Power banks, battery packs, e‑mobility chargers, tools
- Service/power inlets for routers, gateways, and IoT devices
Customization options:
- 3 A or 5 A rating; shell and contact plating thickness
- Mounting style: RA SMT with stakes, vertical THT, mid‑mount
- Ground tab count/style, alignment pegs, standoff height
- Panel‑mount bezel, gasket, dust cap for improved ingress resistance
- Insulator color, marking, packaging (tape‑and‑reel, tray)
Notes:
- For >3 A or >5 V operation, use a PD controller and an e‑marked 5 A cable.
- If data is required, choose a 16‑pin or 24‑pin USB‑C receptacle variant.
- Implement OVP/OCP and TVS protection per system requirements.
