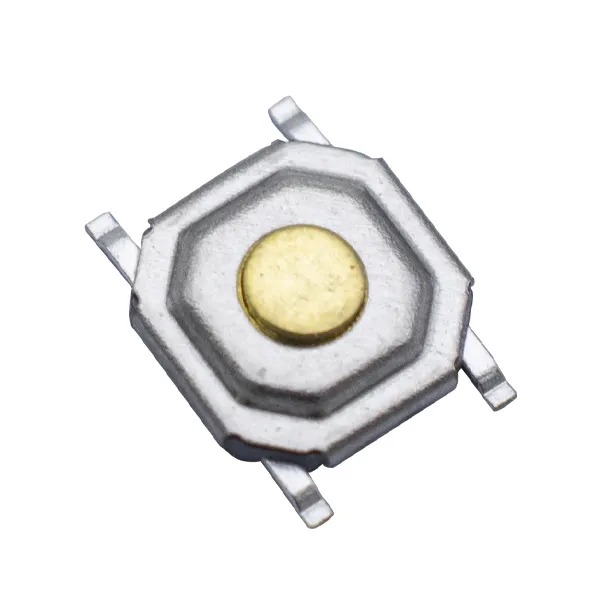

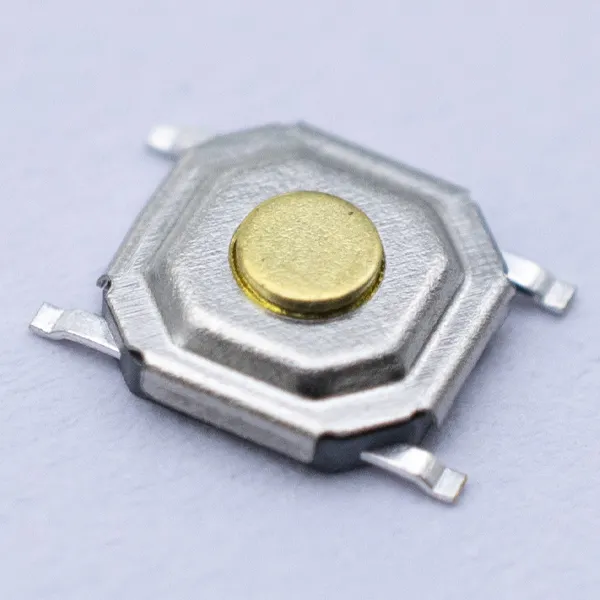

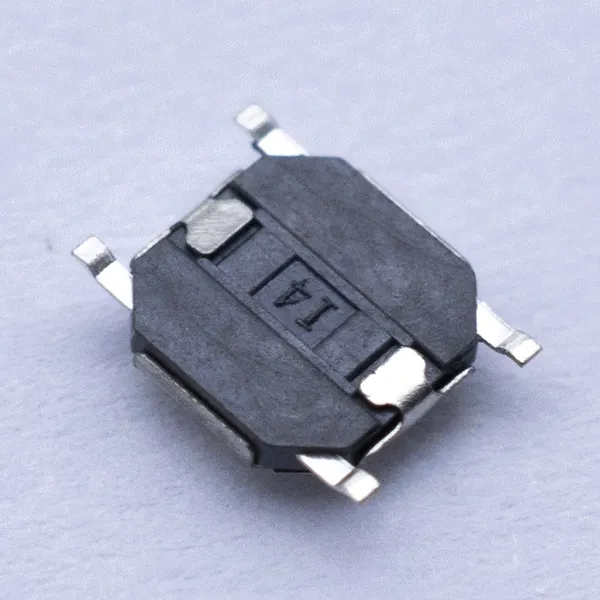

Best-Seller Tact Switch For Consumer Smart Gadgets

A tactile switch solution designed for smart watches, true wireless earbuds (TWS) charging cases, smart remote controls, VR/AR controllers, smart speakers, smart home IoT devices, digital cameras, and portable medical electronics.Features a low-profile, compact, high-reliability structure that delivers a crisp, consistent tactile “click.” Optional waterproof sealing and top-actuation/side-actuation variants. Compatible with SMT reflow processes and suitable for high-density PCB layouts.

Key Features

• Low profile and compact: common footprints 3×4 mm, 4.5×4.5 mm, 6×6 mm; height as low as 2.0–2.5 mm for thin devices.
• Consistent tactile feel: metal snap dome structure provides stable operating force and clear detent; quiet or high-tactile variants available.
• Long life: mechanical life up to 1,000,000 cycles (model-dependent), suitable for high-use scenarios.
• Water and dust protection: optional sealed versions up to IP67 for wearables and outdoor devices.
• Multiple operating forces and travel: 120 gf, 160 gf, 260 gf options; travel 0.2–0.35 mm to match different UI designs.
• Optimized for low-power circuits: low contact resistance and short bounce time for robust key detection.
• Assembly-friendly: supports SMT and THT; compatible with keycaps and light guides; can be paired with SMD LEDs for backlighting.
• Environmental compliance: materials comply with RoHS/REACH; halogen-free options available.

Typical Applications

• Wearables: watch/band side keys, mode switches
• TWS earbuds and charging cases: pairing/reset/lid detection
• Smart remotes and handheld controllers: function keys, D-pad/arrow keys
• Smart home and IoT terminals: door locks, HMI panels, environment controllers
• Audio and camera devices: record/power/shutter assist keys
• Portable medical and fitness devices: start/confirm keys

Technical Specifications (typical values, vary by model)

• Rated load: DC 12 V, 50 mA (other ratings customizable, e.g., 5–24 V, 10–100 mA)
• Contact resistance: ≤100 mΩ (initial), stable over service life
• Insulation resistance: ≥100 MΩ (at DC 100 V)
• Dielectric strength: AC 250 V, 1 min, no breakdown
• Operating force (OF): 120/160/260 gf options, tolerance approx. ±20%
• Total travel (TT): 0.2–0.35 mm (depending on structure)
• Return force (RF): ≥30% of OF
• Contact bounce time: ≤10 ms
• Mechanical life: 100k–1,000k cycles (depends on model and force)
• Operating temperature: -20 to +85°C (extended versions up to -40 to +85°C)
• Storage temperature: -40 to +85°C; recommended humidity 30–70% RH
• Protection rating: standard IP40; sealed versions up to IP67
• Solderability: reflow peak 245–260°C for ≤10 s; hand soldering 350°C for ≤3 s

Construction and Materials

• Housing: LCP/PA46/PBT high-heat engineering plastics (UL 94 V-0 flame rating)
• Dome/snap element: stainless steel or phosphor bronze with silver/gold plating to reduce contact resistance and improve corrosion resistance
• Terminals: copper alloy, tin-plated (SMT) or silver/nickel-plated (THT)
• Seals: silicone/elastomer O-ring (for sealed types)
• Actuator: nylon/silicone keycap; transparent options compatible with backlighting

Size and Form Factor Selection (examples)

• Ultra-thin SMT: 3.0×4.0×2.0–2.5 mm, top or side actuation
• General compact: 4.5×4.5×2.5–3.5 mm, square or round actuator surface
• High-tactile: 6.0×6.0×4.3–7.0 mm, supports higher force and longer travel
• Side-actuated: ideal for bezel keys and narrow-edge designs

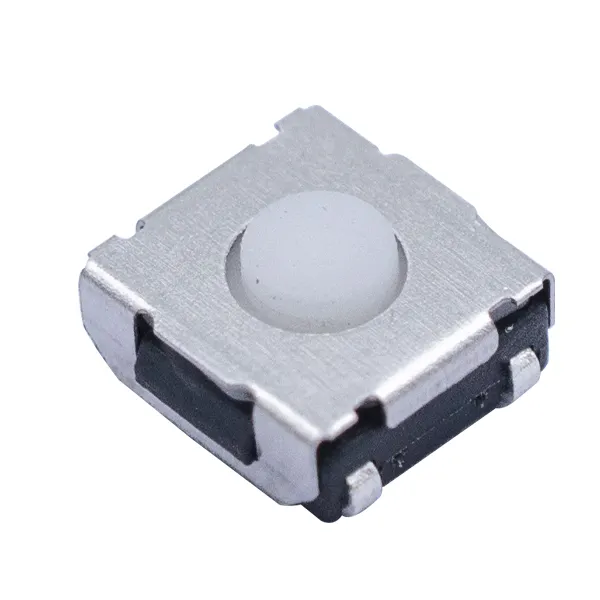

• Sealed: with gasketed/overmolded cap, suitable for IP67 applications

Available Options

• Operating force: light/medium/heavy (approx. 100–300 gf)
• Tactile profile: standard “click,” enhanced detent, quiet type
• Protection level: standard/splash-proof/IP67 sealed
• Mounting: SMT, THT, custom bent leads
• Actuator height and color: multiple heights/colors; compatible with light pipes
• Terminal plating: tin/nickel/gold (based on signal reliability and soldering method)
• Backlight: light-guiding solutions coordinated with SMD LEDs

Reliability and Testing (reference standards)

• Mechanical life cycling: up to 1,000,000 cycles (room temperature)
• Thermal storage and shock: -40 to +85°C cycling
• High temperature/high humidity: 85°C/85% RH for 168 h (no functional failure)
• Vibration/shock: per IEC 60068/JIS C 60068
• Salt spray/corrosion (metal parts): 48–96 h (material-dependent)
• Solder heat resistance and solderability: per IPC/JEDEC references
• ESD robustness: integrate with system design; recommend ±8 kV air discharge protection

Soldering and Assembly Guidelines

• SMT reflow: preheat 150–180°C for 60–120 s; peak 245–255°C for ≤10 s; avoid exceeding 260°C
• Hand soldering: 350°C, ≤3 s per joint; avoid heating the housing
• PCB layout: reserve mechanical clearance around the switch; prevent top-cover compression; add hardware debouncing/EMI measures to signal routing
• Cleaning: sealed versions allow moderate cleaning; avoid aqueous wash for non-sealed types, use no-clean flux
• Mechanical assembly: keep actuator/keycap coaxial; avoid lateral shear that reduces service life

Quality and Compliance

• Systems: ISO 9001/ISO 14001 commonly supported; can meet IATF 16949 incoming quality requirements if needed
• Environmental: RoHS and REACH compliant; halogen-free materials available
• Regulatory: California Prop 65 disclosure support if required

Packaging and Logistics

• Tape and reel: 8/12 mm paper/plastic carrier; 13" reel; 2,000–4,000 pcs per reel (size-dependent)
• Dry/msa: typically MSL 1; sealed types evaluated per materials
• Labeling: lot number, part number, quantity, RoHS mark
• Storage recommendations: 5–30°C, 30–70% RH, keep dry and dust-free

Ordering Information Example (custom part number rule)

• Model: TSG-SMT-3x4-160GF-IP67-G
  • TSG: Tact Switch for Gadgets
  • SMT: surface-mount
  • 3x4: footprint size
  • 160GF: operating force
  • IP67: protection rating
  • G: gold-plated contacts (options: S = silver, T = tin-plated terminals)

Design Notes

• Select operating force based on key area and the elasticity of the device’s top cover to avoid overly hard or soft feel.
• For wearables and outdoor devices, prioritize sealed versions and validate the device’s waterproof structure; recommended seal compression 15–25%.
• For robust detection, implement hardware RC and software debouncing (5–10 ms) at the MCU.
• In backlit designs, manage LED heat and light paths to prevent light leakage affecting appearance.
• For ultra-thin devices, choose side-actuated or low-profile top-actuated types and verify the reflow temperature window.

Notes

• The above covers general parameters and options. Detailed specifications, drawings, and test reports can be customized per project. Please share application details, target dimensions, operating force, and lifetime requirements to receive matched models and detailed drawings.
