Strong-Feedback Tact Switch 6x6 For Office Electronics

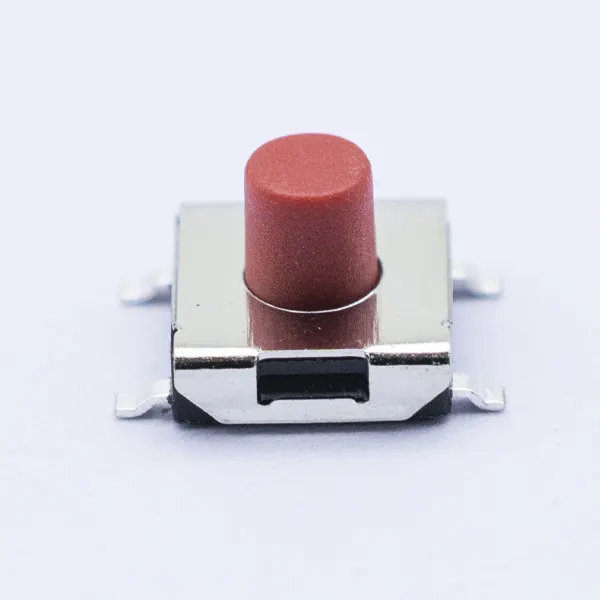

A 6×6 mm tactile switch engineered for a crisp, high-force “strong feedback” press feel. Ideal for office equipment control panels—printers, copiers, time clocks, telephony and conferencing devices, projectors, shredders, counters—where clear actuation and reduced mis-presses are important.

Key Features:

• Strong tactile feedback: higher operating force with a distinct “click” for confident actuation
• Reliable contact: low contact resistance and stable signal switching
• Multiple stem heights: options to fit varied panel stack-ups
• Flexible mounting: available in SMD and THT versions for mainstream assembly processes
• Durable: tuned for frequent use in office environments
• Environmental compliance: RoHS/REACH compliant

Typical Applications:

• Printer/copier operator panels
• Fax, scanner, time & attendance, projector controls
• Telephony/conference system menu, volume, and function keys
• POS, label printers, access control and security panels
• General office electronics keypads

Technical Specifications (typical):

• Body size: 6 × 6 mm; stem heights: 4.3 / 5 / 7 / 8 / 9.5 / 12 mm
• Electrical rating: DC 12 V, 50 mA (signal-level use)
• Operating force (strong feedback): approx. 260 gf / 320 gf / 500 gf (selectable)
• Travel: approx. 0.2–0.3 mm
• Initial contact resistance: ≤100 mΩ
• Insulation resistance: ≥100 MΩ at 100 V DC
• Dielectric strength: 250 V AC for 1 minute (terminals to case)
• Bounce: ≤10 ms
• Operating temperature: -25°C to +85°C
• Storage temperature: -40°C to +85°C
• Mechanical life: ≥100,000 cycles (high-force types); optional versions up to 500,000 cycles
• Terminal material: copper alloy; tin, silver, or gold plating options
• Housing: engineering plastic (e.g., PA66); flame-retardant/high-temp options available
• Mounting: SMD (reflow compatible) / THT (wave or hand solder)
• Packaging: SMD tape & reel; THT bulk or ammo/taped

Construction and Dimensions:

• Pin layout: standard 6×6 tactile switch four-pin format
• THT hole pattern: approx. 4.5 × 4.5 mm; recommended PCB hole Ø 1.0–1.2 mm
• SMD pads: standard 6×6 footprint; recommended land pattern available on request
• Caps and accessories: compatible square/round keycaps and dust caps (optional)

Soldering and Assembly Guidelines:

• Reflow (SMD): peak ≤245°C; peak time ≤10 s; follow standard reflow profile
• Wave (THT): preheat, peak ≤260°C; immersion ≤5 s
• Hand solder: tip ≤350°C; dwell ≤3 s per pin; avoid prolonged heating
• Cleaning: verify solvent compatibility; prevent liquid ingress into the switch
• Panel integration: ensure stem-to-bezel alignment; minimize side loads to maintain life and feel

Quality and Compliance:

• RoHS and REACH compliant
• Options: halogen-restricted, high-temperature versions, gold-contact for low-level signal reliability

Ordering Information and Options:

• Mounting: SMD / THT
• Operating force: 260 gf / 320 gf / 500 gf (strong feedback)
• Stem height: 4.3 / 5 / 7 / 8 / 9.5 / 12 mm
• Terminal plating: tin / silver / gold
• Packaging: SMD 2,000–4,000 pcs/reel (varies by height and tape width); THT 1,000 pcs/bag or taped
• Minimum order quantity: varies by configuration; common specs available from stock

Selection Guide:

• For maximum confirmation and fewer mis-presses: choose 320–500 gf options
• For high cycle counts and reliability: select extended-life and gold-plated terminals
• For high-temp processes/environments: choose high-temperature housing variants
• For tight panel stacks: choose lower stem heights (e.g., 4.3/5 mm)

Notes:

• Avoid lateral force or off-center pressing to preserve lifespan and tactile feel
• Use for signal-level switching only; do not switch high-power loads directly
• Store and ship dry and sealed; for long-term storage, keep in a cool, dry environment
• ESD: implement appropriate handling and assembly protections

Documentation and Support:

• Full datasheet, 3D models, recommended PCB land patterns, reflow profiles, and reliability reports available
• Customization: operating force, stem height, terminal plating, and packaging can be tailored to your project
• Samples and lead time: standard configurations available; production lead times confirmed per order
