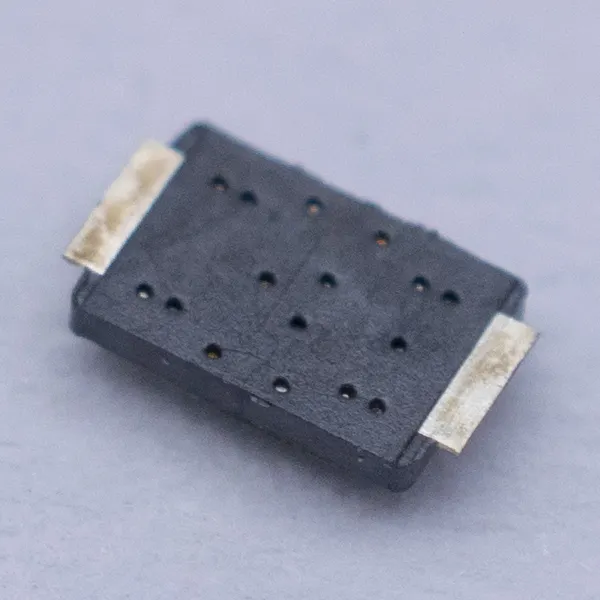

Quick-Action Tact Switch 2x3 For Industrial Control

• Ultra-compact tact switch designed for industrial HMI and field devices. 2×3 mm footprint, short travel for fast actuation, crisp tactile feedback, supports high-temperature reflow and long-life operation.
• High-temperature materials and stable dome spring structure deliver consistent feel and contact reliability under vibration, temperature swings, and frequent use.

Key selling points

• Fast actuation, crisp tactile feel: short travel with clear detent reduces mis-operations and improves keying efficiency.
• Industrial-grade durability: up to 1,000,000 electrical cycles depending on operating force and conditions; ideal for high-frequency use.
• Wide temperature and environmental resilience: operating -40 to 85°C (optional -40 to 105°C). Optional top-sealed dust/water protection.
• Tiny footprint: 2×3 mm for high-density PCBs and slim panels.
• Flexible configurations: multiple operating forces, heights, terminal styles (SMD/TH), surface plating, and sealing levels.
• Mass-production friendly: SMT reflow compatible; tape-and-reel supply for automated pick-and-place.

Typical applications

• Industrial control panels, PLC/drive front keys, field instruments and sensor setup keys
• Portable calibrators, test and measurement equipment, data loggers
• Robot end-effectors, HMI modules, AGV/logistics control keys
• Medical and laboratory device function keys (not for life-support)
• Aerospace/rail auxiliary equipment setup keys (project compliance available on request)

Electrical specifications (typical)

• Switch type: SPST-NO (momentary, normally open)
• Rated load: 12 VDC, 50 mA (other ratings evaluable)
• Contact resistance: ≤100 mΩ initial, controlled over life
• Insulation resistance: ≥100 MΩ at 100 VDC
• Dielectric strength: 250 VAC, 1 minute, no breakdown
• Bounce time: ≤10 ms (varies with structure and OF)
• EMC note: recommend debounce plus ESD protection (TVS/RC) at the circuit front-end

Mechanical specifications (typical/options)

• Footprint: approx. 2.0 × 3.0 mm (overall height varies by option)
• Overall height options: 0.9 mm, 1.5 mm, 2.0 mm (keycap or overlay adds height)
• Travel: 0.2 ± 0.1 mm with defined tactile snap
• Operating force (OF) options: 150 gf, 220 gf, 300 gf
• Return force: ≥30% of OF
• Life: 300k to 1,000k cycles (depends on OF, environment, actuation method)
• Protection: standard IP40; optional top-sealed IP67 (silicone membrane)

Construction and materials

• Cover/body: high-temperature LCP or PA46 engineering plastic (reflow capable)
• Dome spring: stainless steel or phosphor bronze, silver or gold plated for reliable conductivity
• Terminals: copper alloy, tin plated (SMD or through-hole)
• Seal: silicone membrane for IP67 versions
• Optional surface treatments for anti-fingerprint/corrosion resistance in harsh environments

Dimensions and mounting

• Mounting styles: SMT (surface-mount) or TH (through-hole for higher mechanical robustness)
• Recommended land pattern: see datasheet or request PCB footprint library (Gerber/ECAD)
• Tape-and-reel supply: 7" or 13" reels with clear orientation marks; suitable for automated placement
• Compatible with keycaps, silicone keypads, or membrane panels for enhanced feel and sealing

Soldering and assembly guidelines

• Reflow soldering: peak ≤260°C for ≤10 s; preheat 150–180°C for 60–120 s; recommend ≤2 reflow cycles
• Hand soldering: 350°C, ≤3 s per pin; avoid pressing on the body or prolonged high heat
• Cleaning: non-sealed versions not recommended for immersion/ultrasonic cleaning; sealed versions allow limited cleaning; avoid aggressive solvents
• Mechanical assembly: avoid strong side loads and sustained high-pressure actuation; ensure even force transfer from panel mechanisms

Reliability and environmental tests (reference)

• Temperature cycling: -40 to 85°C passed typical cycling tests
• Vibration: 10–55 Hz, 1.5 mm amplitude, 2 hours without functional abnormality (typical)
• Shock: 100 G, 6 ms, no structural damage (optional validation)
• Salt spray/corrosion: project-based testing and material upgrades available

Compliance and certifications

• RoHS and REACH compliant; halogen-free option
• Manufacturing system: ISO 9001 certified (factory certificates available)
• Can support third-party project-specific testing and documentation upon request

Part numbering and ordering (example)

• Part code: QAT-23-[Terminal]-[OF]-[Height]-[Plating]-[Seal]
  • Terminal: SMD or TH
  • OF: 150/220/300 (gf)
  • Height: 0.9/1.5/2.0 (mm)
  • Plating: Ag or Au
  • Seal: STD (IP40) or SEAL (IP67)
• Lead time: standard samples 2–5 days; mass production 2–4 weeks; custom lead time per confirmed spec
• Packaging: tape-and-reel (e.g., 4,000–10,000 pcs/reel); bulk/tray available
• MOQ: standard 1,000 pcs; custom MOQ varies with configuration

Customization services

• Tailored operating force, travel, and dome curve
• Top-seal, chemical-resistant materials, and high-temperature versions
• Terminal geometry, plating, keycaps, and tactile feel optimization
• PCB footprint libraries, 3D models, and evaluation prototypes

Included technical documents

• Datasheet
• Recommended land pattern and reflow profile
• 3D model (STEP) and 2D drawing (DXF)
• Reliability test report and RoHS/REACH statements

FAQ

• Can it be actuated from the side? Recommend vertical actuation. For side presses, use a side-actuated design or add a guiding mechanism.
• How can we extend life? Choose a higher OF, optimize the force transfer area, minimize contamination and environmental stress, and implement proper debounce.
• Will the tactile feel change after reflow? Minor change is normal. Using high-temp materials and a correct reflow profile keeps variation within acceptable limits.
• Can it support waterproof front panels? Use the IP67 top-sealed version with a sealed panel or silicone keypad to achieve high overall protection.

To receive the datasheet, samples, and PCB/3D files, please share your target operating force, mounting style (SMD/TH), height, and whether sealing is required. We will provide documents and a quote the same day.
