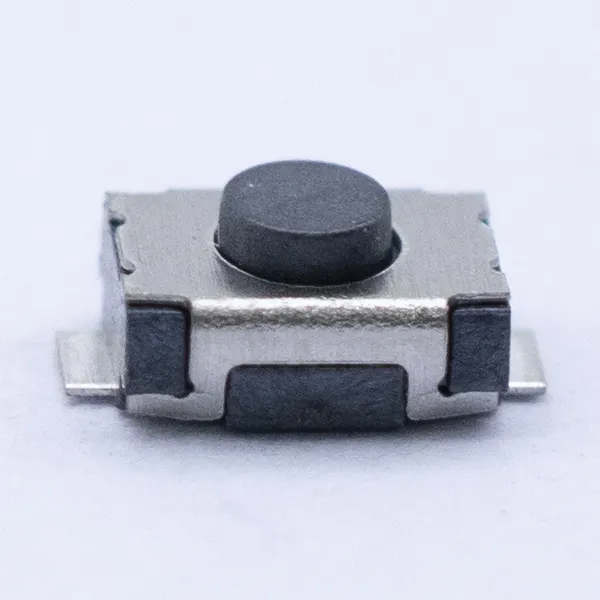

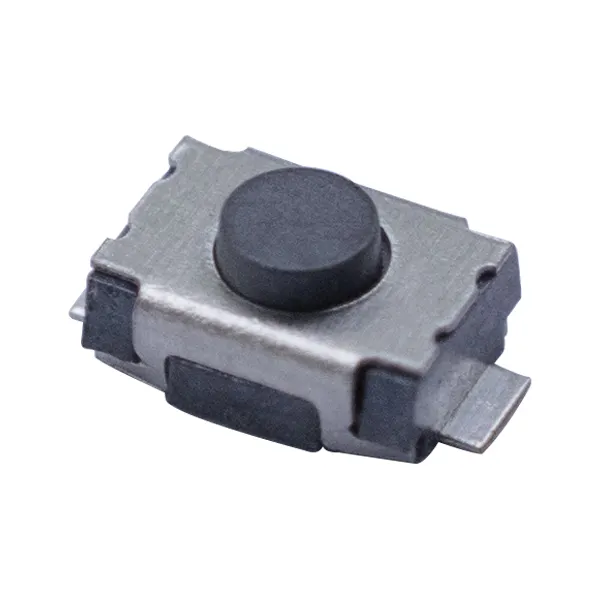

Smooth-Click Tactile Switch For Audio Equipment

A low-noise, smooth‑click tactile switch engineered for premium audio equipment. It delivers a soft, refined tactile bump with minimal acoustic click and low contact bounce, protecting signal integrity in quiet studios, stages, and listening rooms. Available in SMT and THT versions with multiple forces, heights, and caps to match mixers, interfaces, DACs, preamps, headphones, pedals, and broadcast consoles.

Key selling points

• Smooth, quiet actuation: damped dome for reduced mechanical noise and a refined tactile feel
• Audio-friendly performance: low contact bounce and gold-plated contacts for clean, glitch-free control signals
• Long life and consistency: stable force curve over life, tight tolerance for matched channel feel
• Low profile options: compact footprints and multiple actuator heights for slim panels and dense PCBs
• Customizable: force, travel, caps, sealing, plating, illumination options, and branding
• Robust build: stainless dome, high-temperature polymers, optional IP67 dust/water protection
• Production ready: tape-and-reel SMT, pick‑and‑place compatible; fast samples and full CAD libraries

Typical applications

• Studio and live mixers, control surfaces, and broadcast consoles
• Headphone and microphone interfaces, DACs, preamps, receivers, streamers
• Portable and desktop players, recorders, loopers, and controllers
• Guitar/bass pedals, synths, drum machines, samplers, and DJ gear
• Key modules in rack units and Eurorack where quiet switching is essential

Technical specifications

• Electrical rating: 12 VDC, 50 mA (logic level control); other ratings on request
• Contact resistance: ≤100 mΩ initial (≤50 mΩ with heavy gold option)
• Insulation resistance: ≥100 MΩ at 100 VDC
• Dielectric strength: 250 VAC, 1 minute
• Operating force options: 130 gf, 160 gf, 220 gf, 300 gf (others by request)
• Total travel: 0.2–0.5 mm; pre-travel short for crisp, smooth bump
• Tactile feel: soft “smooth-click,” low acoustic emission
• Bounce time: ≤5 ms typical
• Operating temperature: −20 to +85 °C (up to +105 °C optional)
• Mounting: SMT (gull-wing) or THT (straight/angled); actuator heights 3.5–13 mm
• Footprints: common 6×6 mm, 4.5×4.5 mm, 5.2×5.2 mm; custom footprints available
• Sealing: open type; dust-proof; IP67 sealed option for washability and outdoor rigs
• Packaging: tape & reel (SMT), tube/tray/bulk (THT)

Materials and construction

• Housing: LCP or PBT, UL94 V‑0, reflow capable
• Actuator/stem: PA46/POM with low-friction surface; wobble-minimized guide
• Dome: stainless steel tactile dome, nickel with selective gold for smooth actuation
• Contacts/terminals: copper alloy, nickel barrier with gold or silver plating
• Damping film: optional micro‑fiber or PTFE layer to minimize acoustic click
• LED option: side or center LED compatibility with light guide caps (on selected models)

Installation and soldering

• SMT reflow: lead‑free profile, peak 245–250 °C, ≤10 s above 235 °C; follow component-specific curve
• Wave/hand solder (THT): 260 °C max 5 s at pin; hand 350 °C max 3 s per pin
• Cleaning: sealed/IP67 versions are washable; open types avoid aqueous cleaning
• PCB layout: keep ground reference nearby, add keep‑out for actuator travel; provide support posts if available
• Panel interface: use matched caps and light pipes; specify stem height with panel thickness
• ESD and EMC: route switch lines to controller with series resistor or RC to suppress bounce/EMI where needed

Reliability and test performance

• Mechanical life: up to 1,000,000 cycles (model/force dependent)
• Electrical life: 100,000–500,000 cycles at rated load
• Contact bounce stability: within spec across temperature and life
• Vibration: 10–55 Hz, 1.5 mm amplitude, no intermittent contacts
• Shock: up to 100 g, 6 ms, no functional damage
• Temperature/humidity: 85 °C/85% RH storage test, post‑test electricals within spec
• Acoustic profile: tuned for low actuation noise for studio environments (subject to enclosure/panel design)

Compliance and certifications

• RoHS and REACH compliant; halogen‑free options
• UL94 V‑0 housing materials
• Conflict‑minerals and PFAS statements available
• Manufactured under ISO 9001 and ISO 14001 systems

Ordering and customization

• Options: size (4.5–6 mm class), actuator height, operating force, travel, plating (Ag/Au thickness), sealing (open/dust‑proof/IP67), SMT/THT, cap style/color, illumination
• Part numbering: encode size–force–height–mount–sealing–plating–cap; custom codes on request
• MOQ: standard parts from stock or low MOQs; customs with negotiated MOQ
• Lead time: samples 3–5 days; production 2–4 weeks typical
• Value‑add: pre‑assembled caps, matched force sets for stereo/dual-mono alignment, kitting with LEDs/light pipes

Resources and samples

• Free samples available for evaluation
• Datasheet, 2D drawings, STEP 3D models, and PCB footprints (Altium, KiCad, Eagle)
• Panel‑cap libraries and light‑pipe recommendations
• Audio application notes: switch noise mitigation, panel damping, de‑bounce filtering
• Request files via your sales contact or download link provisioned upon inquiry

Audio‑focused design tips

• Use sealed/damped variants and compliant panel gaskets to minimize audible click in open‑mic environments
• Add firmware de‑bounce (2–10 ms) and, if needed, a small RC (e.g., 1–4.7 kΩ with 100–470 nF) for pristine edges
• Mechanically isolate the switch from mic preamp PCBs to reduce microphonics; consider thicker panels or caps with elastomer skirts
• Select matched-force bins for consistent feel across channels and stereo symmetry

FAQ

• Can this switch carry audio signal current? It is intended for low‑level control logic. Route audio through dedicated analog paths and use the switch only as a control input.
• How quiet is the “smooth‑click”? The dome and damping design significantly reduce mechanical click. Actual acoustic output depends on panel, cap, and chassis; we can provide guidelines and samples for evaluation.
• Will IP67 sealed versions feel heavier? Sealed types may have slightly higher force and different acoustic character; matched sealed smooth‑click options are available.
• Do you offer illuminated versions? Yes, selected footprints support center or side LEDs with compatible translucent caps.
• Can I get custom force or travel? Yes. We can tune dome geometry and plating to achieve target force/travel and feel.
• Are 3D models and PCB footprints available? Yes. STEP models, DXF, and footprints for major EDA tools are provided on request.

Next steps

• Tell us your preferred size, mounting, stem height, and target force
• Request free samples and CAD/PCB libraries for rapid drop‑in testing
• Share your panel thickness and enclosure details for cap and damping recommendations
