2 Position Slide Slide For Machine

Model No.:HX SS-22L05G5

In stock, shipped directly

Advantages:

  • Switch type: SPST, latching push on/push off; 2 pins
  • Environment: operating −20 to +70 °C
  • Electrical rating: 3–24 V DC
  • Mechanics: travel ~2–3 mm
  • Compliance: RoHS and REACH
Back to list
Get free A quote
Download
Product Specification
Product Description
Application Field
Why Choose Us

Product Description

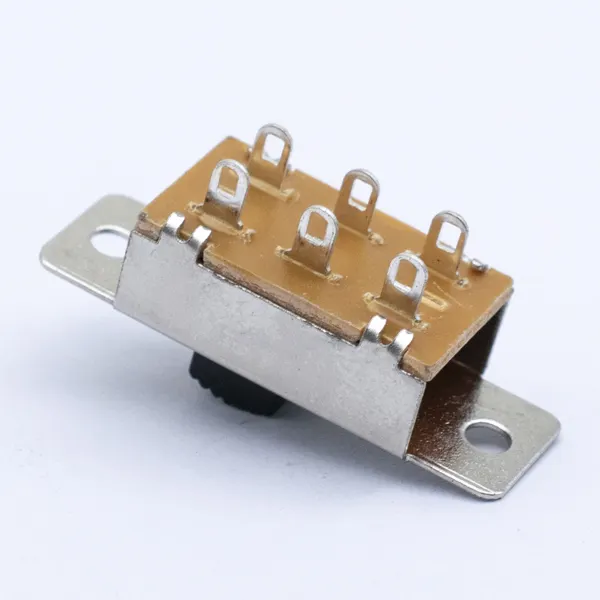

Two-position slide switch for machinery and equipment, suitable for power and function selection. Features a widened slider with crisp detent positions and a reinforced metal bracket for reliable operation under vibration and harsher use conditions. Supports PCB through-hole (THT) and panel mounting to fit control panels, enclosures, and industrial instruments.

Key features and specifications:

  • Switch type: 2-position slide (ON-OFF or ON-ON); poles: SPST/SPDT optional
  • Mounting: PCB THT (optional reinforced locating pins); panel nut or snap-in versions available
  • Terminals: straight pins/angled pins/solder lugs; press-fit anti-loosening design available
  • Electrical ratings: 125/250 VAC 3–6 A; 12/24/48 VDC 3–5 A (derate by model and load type)
  • Electrical performance: contact resistance ≤50 mΩ; insulation resistance ≥100 MΩ (@500 VDC); dielectric strength 1500 VAC/1 min
  • Mechanical performance: travel ~3–5 mm; operating force 1.5–3 N; distinct self-locking detents; mechanical life ≥20,000 cycles
  • Materials: PA66/PC flame-retardant housing (UL 94 V-0); copper-alloy contacts with silver/nickel plating; stainless/nickel-plated slider and bracket
  • Environment: operating temperature −25 to +85 °C; vibration-resistant design; optional dust cover, protection to IP40/optional IP54
  • Compliance: RoHS/REACH; designed to align with IEC/EN 61058 (model-dependent)

Applications:

  • Power switching and mode selection for machine tools and automation equipment
  • Function selection in industrial control cabinets and distribution modules
  • Start/stop and range selection in test jigs and laboratory instruments
  • Speed/direction selection for low-voltage tools

Options and customization:

  • Slider length/color, end stops, panel scale/escutcheon
  • Gold-plated terminals (for low-current/signal use)
  • Extended metal bracket and anti-loosening hardware

Design notes:

  • Apply appropriate derating for DC and inductive loads; use RC snubbers or diode suppression
  • Not recommended to carry large inrush or motor starting currents directly; pair with relays/contactors
  • Verify poles, contact arrangement, PCB hole pattern, and slider clearance before design-in
  • Observe wave-solder temperature/time per component limits; prevent solvent ingress during cleaning
