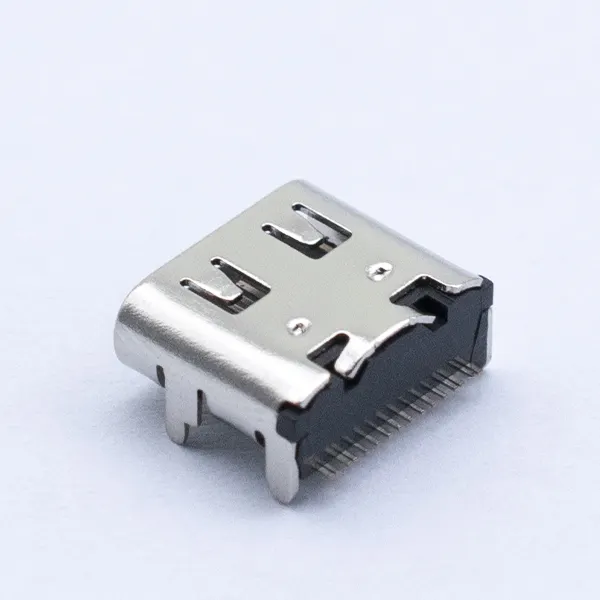

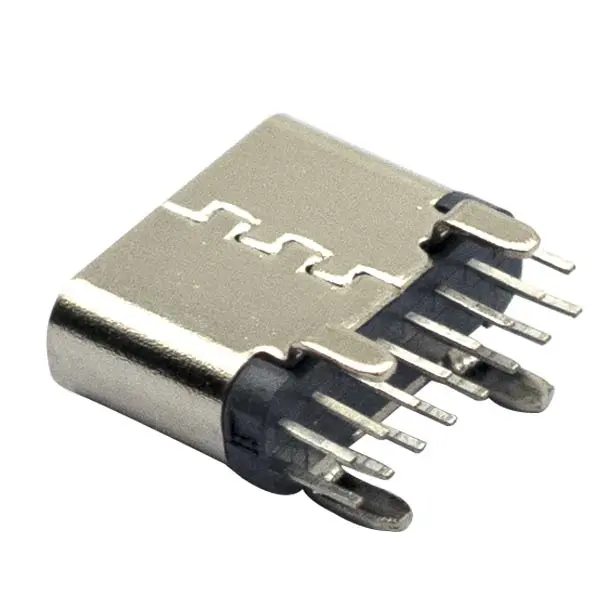

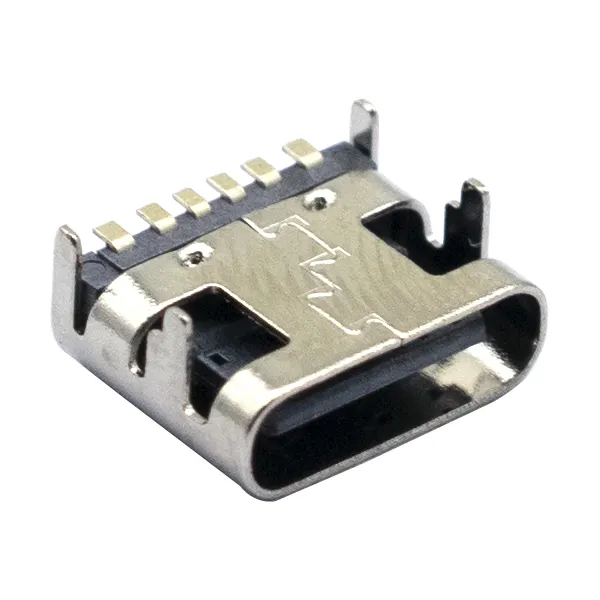

USB-C Connector C TYPE 16 PIN For Charge Data Transfer

USB Type‑C 16‑pin connector for charging and USB 2.0 data up to 480 Mbps. Reversible mating, shielded shell and gold‑plated contacts deliver low resistance and reliable performance; ≥10,000 mating cycles. CC pins enable device detection and PD negotiation; supports 5 V/3 A, and up to 20 V/5 A with proper PD controller and compliant cable (optional, design‑dependent). Offered in SMT, through‑hole or hybrid footprints with locating pegs and reinforcement tails, for 1.0–1.6 mm PCB. Ideal for smartphones, tablets, power banks, industrial devices, chargers and hubs. Compliant with USB Type‑C spec, RoHS and REACH.

Key specs:

• Pins: 16 (USB2.0 D+/D−, VBUS/GND, CC, SBU)
• Data: USB 2.0 up to 480 Mbps
• Power: 5 V/3 A; USB PD up to 20 V/5 A (optional)
• Construction: shielded shell, gold‑plated contacts, pegs/reinforcement tails
• Durability/Environment: ≥10,000 cycles; −25 to +85 °C
• Mounting: SMT/TH/hybrid; fits common PCB thickness
• Compliance: USB Type‑C spec, RoHS, REACH
