Product Description

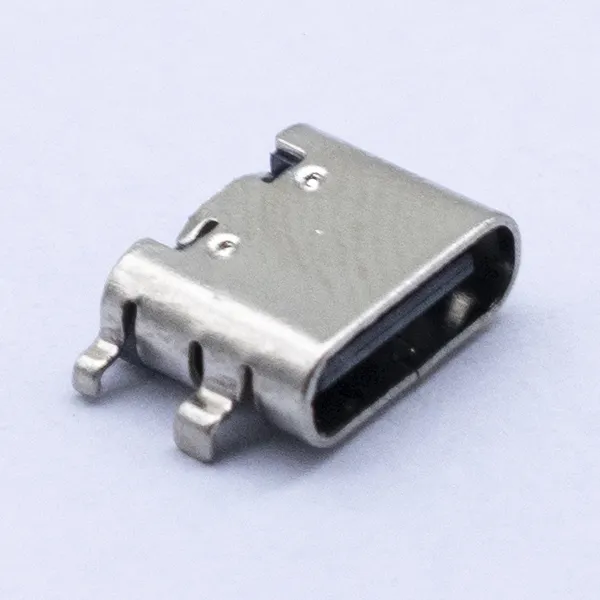

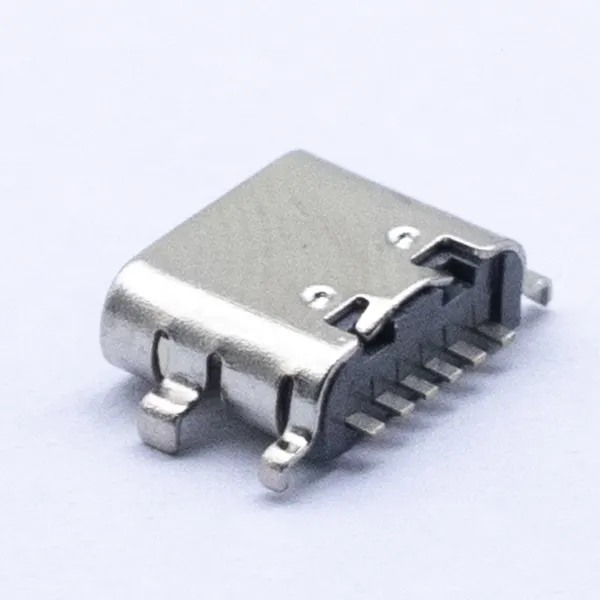

This 6‑pin USB Type‑C receptacle is optimized as a power‑only port for industrial equipment that doesn’t require data. The simplified pinout brings out VBUS×2, GND×2, and CC1/CC2, enabling correct cable orientation, current advertisement (Default/1.5 A/3 A), and USB Power Delivery negotiation when paired with a system PD controller. No D+/D−, SuperSpeed, or SBU pins are present, improving robustness and simplifying PCB layout. A reinforced metal shell with multiple ground tabs and through‑hole stakes delivers high mechanical retention and a defined chassis‑ground path for EMI/ESD control. Gold‑plated power and CC contacts ensure low contact resistance and long service life. Available in right‑angle SMT (with shell stakes), vertical, or mid‑mount options for front‑panel integration. Optional panel gasket and dust cap help achieve system‑level sealing in dusty or oily environments.
Key features:
- 6‑pin, power‑only USB‑C
- Pins: VBUS×2, GND×2, CC1, CC2
- No USB data pins (D+/D−/SS/SBU) for maximum robustness
- Power capability
- 5–20 V per USB‑C/PD system design
- 3 A standard; 5 A high‑current variant available (requires 5 A‑rated cable and PD negotiation)
- Industrial durability
- 10,000+ mating cycles; reinforced shell with through‑hole retention posts
- Wide operating temperature and vibration‑resistant structure
- EMI/ESD performance
- Multiple shell grounds for low impedance to chassis
- Defined ESD shunt path to chassis ground (use with TVS/PD controller as required)
- Assembly‑friendly
- SMT reflow compatible; coplanarity‑controlled feet; tape‑and‑reel with pick cap (RA SMT)
- Vertical THT and mid‑mount options for mechanical flexibility
- Materials and compliance
- UL94V‑0, halogen‑free housing; hard‑gold contacts
- RoHS/REACH compliant
Typical specifications (verify the chosen part’s datasheet):
- Pin count: 6 (VBUS×2, GND×2, CC1, CC2)
- Voltage: up to 20 V (with PD; default 5 V without PD)
- Current: 3 A standard; 5 A high‑current variant
- Contact resistance: ≤30 mΩ (VBUS/GND), ≤50 mΩ (CC), initial
- Insulation resistance: ≥100 MΩ
- Dielectric withstand: ≥100 VAC, 1 min
- Mating life: 10,000 cycles (typical)
- Operating temperature: −40 to +85 °C (−40 to +105 °C optional)
- Soldering: SMT reflow (shell stakes wave/selective solder) or THT (vertical)
- Packaging: tape‑and‑reel with pick cap (SMT); tray (THT)
Applications:
- PLCs, HMIs, panel meters, drives, and power modules
- Test/measurement instruments and dataloggers (power input)
- Rugged IoT gateways, routers, and edge controllers
- Handheld terminals, scanners, labelers, and docking/charging cradles
- LED drivers, battery packs, tools, and service ports
Customization options:
- Current rating (3 A or 5 A), shell plating, contact plating thickness
- Mounting style (right‑angle SMT with stakes, vertical THT, mid‑mount)
- Panel‑mount bezel, gasket, and dust cap for improved ingress resistance (system‑level sealing required)
- Ground tab style/quantity, alignment pegs, standoff height
- Insulator color, logo/part marking, packaging format
Notes:
- For >5 V or >3 A operation, a PD controller and 5 A‑rated cable are required.
- If USB data is needed, choose a 16‑pin or 24‑pin Type‑C receptacle variant.
