Product Description

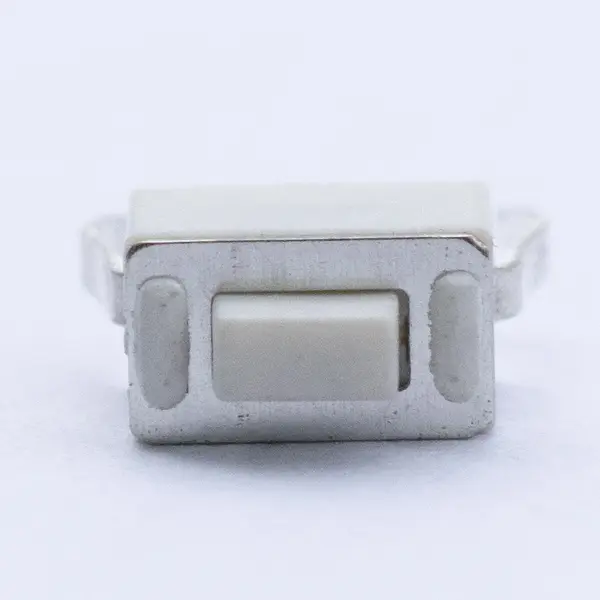

A premium, low-noise tactile switch engineered for devices that demand a refined, smooth click feel. Designed with an optimized dome and stable actuator geometry, it delivers a consistent tactile bump with minimal wobble and reduced audible click, enhancing the perceived quality of wearables, audio equipment, cameras, portable electronics, and smart home controllers.
Key Features
- Smooth, refined tactile feedback with reduced click noise
- Stable actuation and minimal key wobble for precise user input
- Compact footprint options for dense PCB layouts
- Long mechanical life up to 1,000,000 actuations (model dependent)
- SPST-NO momentary contact ideal for UI inputs
- SMD and through-hole versions available
- Sealed variants for dust and moisture protection (up to IP67 optional)
- Gold or silver contact plating options for reliable low-level signals
- Compatible with automated SMT assembly (tape-and-reel packaging)
- RoHS compliant and halogen-free options
Typical Applications
- Premium wearables and fitness trackers
- Headphones, audio players, and studio gear
- Cameras, gimbals, and imaging accessories
- Smart remotes and home automation devices
- Portable medical and measurement instruments
- Laptops, keyboards, and peripheral controls
Technical Specifications
- Electrical rating: 12 VDC max, 1–50 mA (low-level signal switching)
- Contact configuration: SPST-NO, momentary
- Contact resistance: ≤100 mΩ initial
- Insulation resistance: ≥100 MΩ at 100 VDC
- Dielectric strength: 250 VAC, 1 min
- Bounce time: ≤5 ms
- Mechanical life: up to 1,000,000 cycles
- Operating force options: 120 gf, 160 gf, 240 gf (others on request)
- Travel: 0.2–0.35 mm
- Operating temperature: −40 to +85°C (extended ranges available)
- Storage temperature: −40 to +85°C
- Actuation noise: engineered for low acoustic output (smooth-click profile)
- IP rating: up to IP67 for sealed versions
- Soldering: SMT reflow compatible; hand/wave solder for THT versions
Mechanical and Size Options
- Body sizes (examples): 3.5 × 6.0 mm, 4.5 × 4.5 mm, 6 × 6 mm
- Actuator styles: low-profile flat, soft-touch cap, extended plunger
- Actuation direction: top push or side-actuated (right-angle) variants
- Height options: 1.9–7.0 mm above PCB, depending on model
- PCB mounting: SMD gull-wing or through-hole pins
- Housing: thermoplastic, UL94 V-0 rated
- Shielding and sealing: optional metal frame and silicone gasket for IP sealing
Materials and Finish
- Contacts: gold (Au) or silver (Ag) plating over copper alloy
- Terminals: tin (Sn) over nickel (Ni) for reliable solderability
- Dome: stainless steel, optimized for smooth tactile profile
- Housing: high-temperature polymer suitable for reflow
Reliability and Compliance
- Environmental: RoHS compliant; halogen-free options
- Salt spray and humidity resistance: available on request
- Vibration and shock tested per consumer electronics standards
- Lifecycle and performance validated across temperature range
Assembly and Footprint Guidance
- Recommended reflow profile aligned with IPC/JEDEC standards (peak ≤260°C; observe MSL)
- SMT tape-and-reel packaging for automated placement
- Suggested PCB land patterns provided per size variant to ensure optimal solder fillets and tactile stability
- Keep-out zones recommended around actuator to prevent mechanical interference
Packaging
- Tape-and-reel for SMT (common pitches: 8/12/16 mm depending on size)
- Tray or bulk packaging for through-hole versions
- Standard reel quantities: 1,000–5,000 pcs per reel, model dependent
Customization
- Tailored operating force, travel, and dome profiles for unique haptic targets
- Custom actuator caps, colors, and textures
- Specialized sealing for outdoor or medical environments
- Extended temperature and lifecycle options
- Private labeling and packaging support
Notes and Usage Recommendations
- Intended for signal-level switching; avoid direct power switching.
- For sealed models, use recommended gasket compression and enclosure tolerances to maintain IP rating.
- Validate acoustic performance in final enclosure, as housing and keycap materials influence sound.
