Product Description

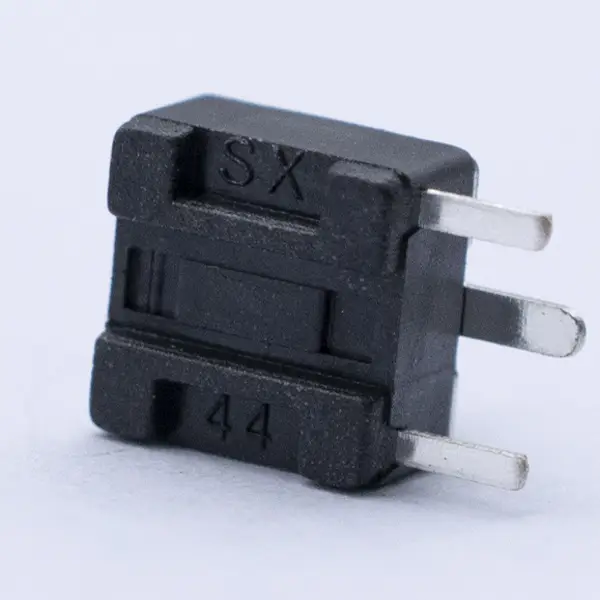

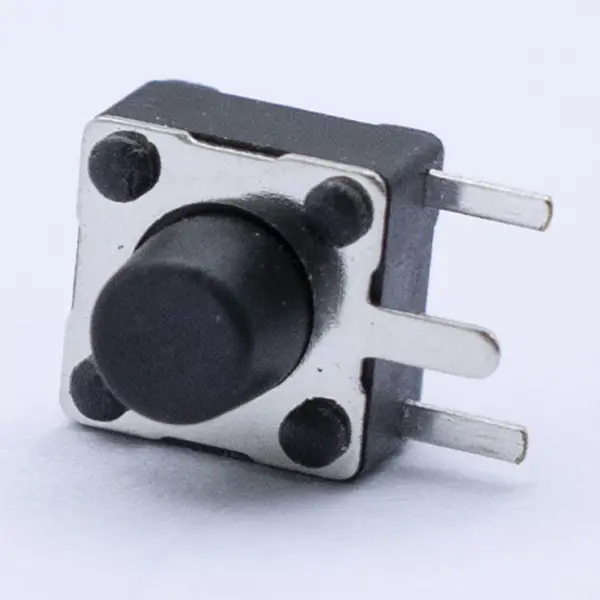

A compact, right‑angle tactile push button designed for horizontal, side actuation where top access is limited. The 6.0 × 6.0 mm body and 3‑pin layout simplify edge‑mount designs in remotes, audio gear, set‑top boxes, handheld instruments, toys, and small appliances. A crisp, short travel provides positive feedback while maintaining reliable electrical performance in high‑mix, cost‑sensitive assemblies.
Key features
- Side‑actuated “side insert” structure for horizontal pressing
- 6 × 6 mm footprint with 3‑pin SPST‑NO circuit
- Through‑hole, right‑angle terminals for robust board retention
- Short, tactile travel for fast, accurate inputs
- Multiple operating forces available to tune feel
- Long mechanical life for frequent use applications
- RoHS/REACH compliant; halogen‑free options
Typical applications
- Remote controls, set‑top boxes, soundbars
- Portable instrumentation and meters
- White goods control panels and small appliances
- Toys, DIY electronics, smart modules
- Automotive interior electronics (non‑safety, non‑critical)
Electrical Specifications
- Rating: 12 VDC, 50 mA (resistive load)
- Contact resistance: ≤100 mΩ initial (≤200 mΩ after life)
- Insulation resistance: ≥100 MΩ at 100 VDC
- Dielectric strength: 250 VAC for 1 minute
- Bounce time: ≤10 ms
Mechanical Specifications
- Operating force options: 130 gf, 160 gf, 260 gf, 320 gf (custom on request)
- Travel: 0.25–0.35 mm
- Mechanical life: 100,000–500,000 cycles (force dependent)
- Actuation direction: horizontal (side push)
- Stop strength: 10 N max on actuator (do not exceed)
Environmental
- Operating temperature: −20°C to +70°C (extended ranges on request)
- Storage temperature: −30°C to +80°C
- Humidity: 40°C, 90–95% RH, 96 h no harmful effects (typical)
Construction and materials
- Actuator/plunger: high‑temperature thermoplastic (UL94 V‑0)
- Cover/Housing: LCP or PA, UL94 V‑0
- Spring: stainless steel
- Terminals: copper alloy, matte tin over nickel
- Contacts: silver alloy standard; optional gold flash for low‑level switching
Dimensions and PCB guidance
- Body: 6.0 × 6.0 mm nominal
- Right‑angle profile; actuator protrudes from side wall
- Recommended PTH hole ø: 1.0–1.2 mm
