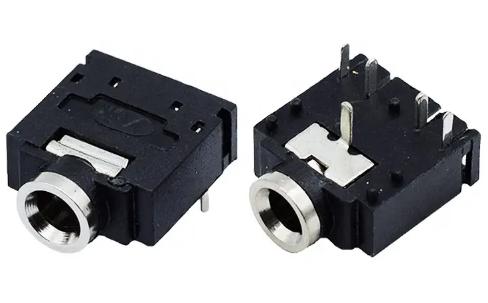

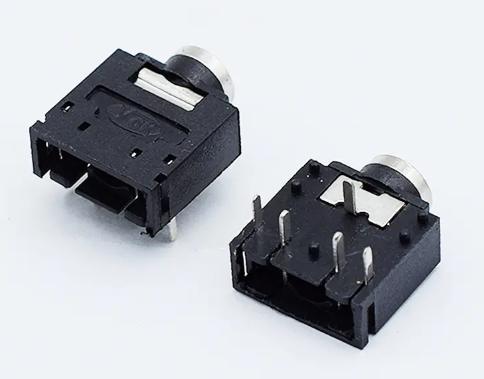

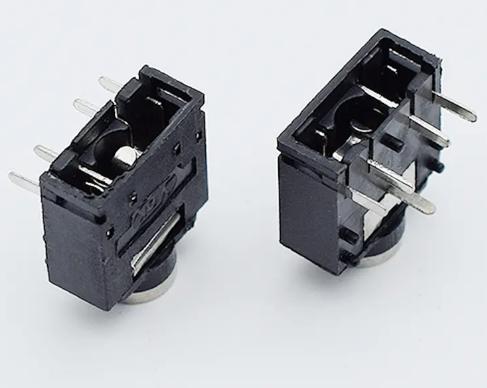

Xbox One Headphone Socket Perfectly Compatible with Micro USB

The Xbox One Headphone Socket is small, but it decides your sound. When it fails, every chat, cue, and step suffers. Today we unveil why it's perfectly compatible with Micro USB device layouts. No bulky workarounds. No messy rewires. Just a clean fit and a steady signal. We'll show how miniaturized design meets durability. We'll explain the numbers that keep noise down and uptime high. And we'll reveal a simple integration path that many brands miss. Ready to see the detail that changes everything? Stay with us - the smartest fix is coming next.

Built For Small Spaces, Tuned For Real Use

Handheld controllers, mobile accessories, and portable recorders live under constant space pressure. Every cubic millimeter has a cost. That's why we start with a miniaturized mechanical design that drops cleanly into slim housings without pushing other components out of position. The result is less compromise for industrial designers and fewer last-minute enclosure changes for engineers.

Durability is equally practical. Repeated plug-in cycles, quick movements, and the occasional cable tug are normal. We use advanced materials and tightly controlled contact geometry so the mating force feels firm but not stiff, keeping wear in check over time. Contact pressure stays consistent, which helps suppress the faint crackle you sometimes hear when a plug shifts during gameplay or recording.

Reliability is measured, not assumed. Each unit is validated for a life test of 5,000 cycles. Electrical performance is set for modern low-noise audio paths and control circuits: DC 30 V / 1 A rating, contact resistance ≤ 30 mΩ, insulation resistance ≥ 100 MΩ, and withstand voltage 500 V AC. Put simply, you get a predictable connector that doesn't become the noisy link in your audio chain.

❓ Why Environmental Robustness Matters?

Devices leave the lab and enter a messy world - sweaty hands, dust, travel, and temperature swings. Our structure keeps contacts stable under light shock and minor contamination. That stability helps reduce intermittent cutouts and lowers support tickets. Fewer surprises after launch means more time spent shipping features, not replacements.

Perfectly Compatible With Micro USB Device Layouts

Many compact devices still standardize power and data through Micro USB, which complicates the front-panel puzzle. You need the Xbox One Headphone Socket close enough for user convenience, but not so close that routing turns into a game of Tetris. Our miniature footprint and clearance considerations make that coexistence practical.

•  Easy Fit In Slim Housings: The small outline avoids clashes with neighboring ports and keeps ID teams happy with cleaner edges and tighter bezels.

•  Board Layout Flexibility: Additional space around the Micro USB area improves trace routing and ground strategies, particularly in dense, four-layer designs.

•  Faster Validation: Known tolerances reduce EVT/DVT churn. Fewer prototype spins, fewer unexpected interferences, faster green-light for tooling.

In the real world, the same connector can serve a family of products with only minor enclosure tweaks. That reuse supports a modular strategy across SKUs, keeping BOMs lean and supply chains stable. For teams adapting older headsets or miniature earphones, it also means you can bridge legacy accessories to newer devices without inventing a new mechanical stack each time.

Practical Specifications, Explained In Plain Language

Engineers don't just want numbers; they want context. Here's how key specs translate into daily benefits:

•  DC 30 V / 1 A Rating - Headroom for low-power audio and control signals, plus safety margin against brief transients.

•  Contact Resistance ≤ 30 mΩ - Keeps series loss minimal, helping preserve signal integrity and reduce noise pickup.

•  Insulation Resistance ≥ 100 MΩ - Low leakage means better channel separation and fewer ghost noises in sensitive stages.

•  Withstand Voltage 500 V AC - Added resilience when the system faces transient spikes during testing or mishandling.

•  Insertion/Extraction Force 3 - 30 N - A confident "click” without excessive wear; end users feel quality with every plug-in.

•  Life Test 5,000 Cycles - Durability that survives daily gaming sessions, frequent commuting, and field work.

You'll notice none of these trade off the compact form factor. That balance - small size without fragile behavior - is what turns a spec sheet into a dependable product.

Use Cases That Highlight Real Value

• Gaming Controllers:

The Xbox One Headphone Socket is a small component with outsized impact. Clean mic input and consistent headphone output shape the entire play experience. A loose or scratchy jack can ruin voice chat and support perception. Our design combats micro-movement noise so players can plug in, forget about the port, and focus on the match.

• Mobile Accessories:

Edge-mounted connectors must coexist with Micro USB and sometimes multiple buttons or LEDs. The compact footprint and predictable keep-outs simplify enclosure design. Brands gain freedom to pursue slimmer silhouettes without gambling on structural weakness.

• Pro-Audio And Field Recording:

Predictable resistance and insulation help maintain low noise floors. When conditions change - hot car, cold studio, dusty venue - the connector keeps its behavior, which is exactly what engineers need in a chain where every decibel matters.

✅  Where It Fits Best

• Connecting miniature earphones to standard phone jacks
• Adapting older headphones to newer mobile devices
• Enhancing compatibility across mixed audio equipment
• Travel, professional audio setups, and daily listening

✅  Common Pain Points We Remove

• Last-Minute Enclosure Revisions: Oversized connectors force compromises; our miniature footprint reduces clashes and preserves ID intent.
• Noisy Prototypes: Inconsistent contact pressure and low-quality plating generate crackle. Tighter tolerances plus advanced materials keep the signal stable.
• Extended Validation Cycles: Uncertain tolerances bog down EVT/DVT. Proven mechanical and electrical windows accelerate approval and tooling.
• Warranty Exposure: Connectors see the most user interaction. Higher cycle life and robust retention reduce failure rates and returns.

✅  Implementation Notes For Faster Success

A good connector is only half the win; implementation closes the loop.

• Keep ground references tight near the jack to reduce susceptibility to EMI, especially around the Micro USB area.
• Provide mechanical support on the PCB (pads, pegs, or bracket points) to spread stress from frequent insertions.
• Validate enclosure tolerances with the cable plug you plan to ship; plug geometry varies by vendor.
• Consider strain-relief geometry on your shell cutout so user force transfers into the housing, not the solder joints.

These practical steps help ensure the Xbox One Headphone Socket behaves in the field exactly as it does on your bench.

Let's Build A Better Audio Experience

If you're designing around Micro USB and want a connector that simply works, Hanxia is ready to help. We support engineering teams with CAD files, mounting recommendations, and quick sampling so you can verify fit and performance early. Whether you're refreshing a controller, launching a travel-friendly accessory, or unifying a multi-SKU lineup, our Xbox One Headphone Socket gives you dependable audio in a compact footprint.

Call to Action: Ready to accelerate integration and cut support noise? Contact Hanxia to request samples and integration notes. Let's shorten your path from prototype to production - and deliver the clear, consistent sound your users expect.
