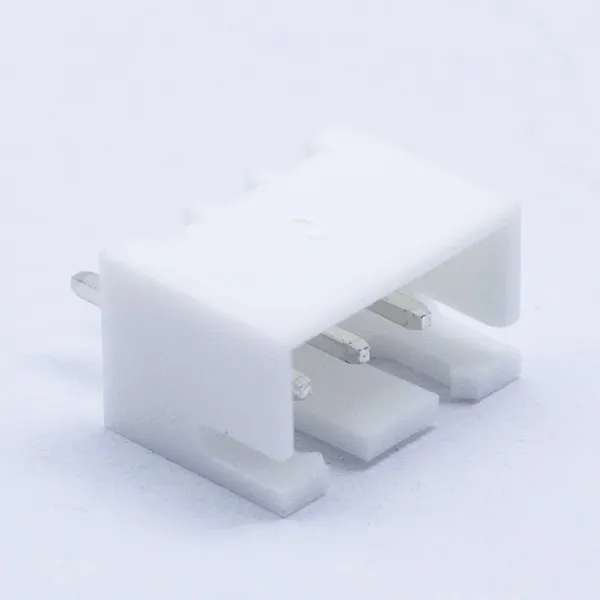

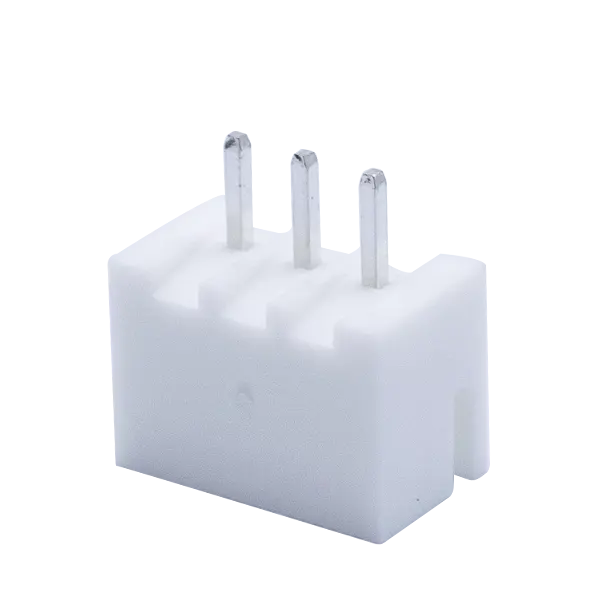

XH2.54 Wire To Board Plug Connector

The XH2.54 (2.54 mm pitch) wire-to-board plug connector provides a compact, reliable cable-to-PCB interface for low-voltage electronics. The plug features a shrouded, polarized keying to prevent mis-mating; optional friction lock/self-lock mechanisms improve retention under vibration or maintenance. It mates with vertical or right-angle headers (THT as standard, SMT optional) to form a complete end-to-end connection.

Key features

• 2.54 mm pitch with shrouded, polarized housing for clear alignment and smooth mating
• Optional friction lock/self-lock to enhance vibration and pull-out resistance
• Compatible header orientations: vertical (top-entry) and right-angle (side-entry); THT standard, SMT optional
• Complete BOM: housing, crimp terminals, headers; wire harness customization available
• Drawings, 3D models, PCB footprints, and assembly guidance provided

Typical specifications (vary by supplier/series)

• Circuits: 2–13 pins
• Rated current: up to 3 A per pin (dependent on wire gauge and temperature rise)
• Rated voltage: up to 250 V AC/DC
• Contact resistance: ≤20 mΩ (typical)
• Insulation resistance: ≥1000 MΩ (typical)
• Dielectric withstand: 1000–1500 VAC for 1 minute (typical)
• Operating temperature: −25 °C to +85 °C
• Mating cycles: ≥50 (typical)

Materials and plating

• Contacts: brass/phosphor bronze, tin plated; optional nickel underplate with selective gold
• Housing: PA66 or PBT, natural/white; optional UL94 V‑0 flame rating
• Headers: high‑temperature PA9T/LCP bodies for lead‑free soldering; solder tails with matte tin

Cable side and assembly

• Crimp terminals for AWG28–22 (≈0.08–0.34 mm²)
• Supports manual crimping and automated applicators; pre‑crimped leads and pull tests available
• Harness customization: core count, gauge, length, color, labels, heat‑shrink, sleeving/overmold
• Header processes: THT wave/selective solder; SMT versions support lead‑free reflow; SMT tape‑and‑reel with peelable pick‑up caps available

Compliance

• RoHS and REACH compliant
• Optional UL94 V‑0 housing
• Incoming inspection and test reports available on request

Typical applications

• LED strips/drivers, power modules
• Consumer electronics and IoT devices
• Instruments, sensors, and control boards
• Small appliances, battery packs, and low‑voltage motor control

Ordering information (example)

• Specify: pitch/pin count/header type and orientation/terminal plating/wire gauge/housing color/packaging
• Example: XH2.54‑THT‑8P vertical header (tin plated) + mating housing + AWG24 crimp terminals (tin plated)
