Product Description
Rugged 16‑pin USB Type‑C receptacle with through‑hole anchor posts for high mechanical strength in industrial devices. Supports USB 2.0 data, CC negotiation, and up to 3 A VBUS by default; optional high‑current and extended‑temperature variants.
Detailed description:

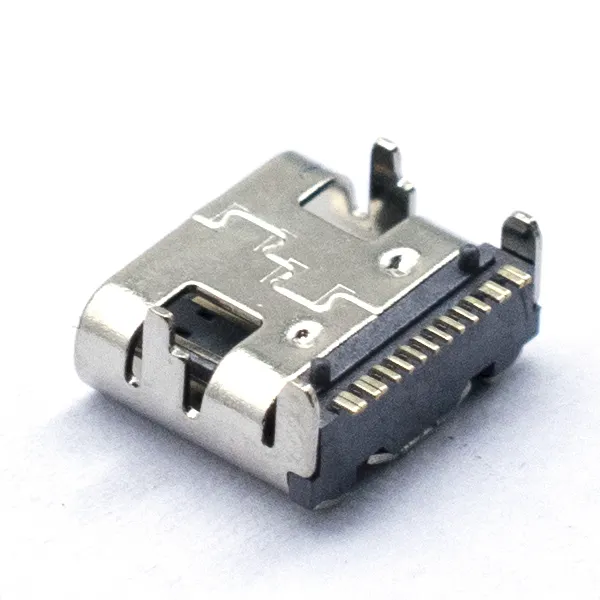

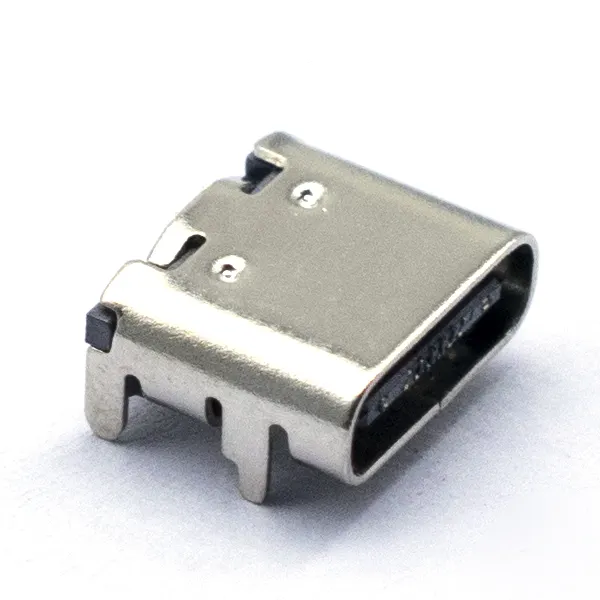

This 16‑pin right‑angle USB Type‑C receptacle is optimized for harsh, vibration‑prone environments and heavy‑duty usage in industrial equipment. A reinforced metal shell with multiple ground tabs and large through‑hole stakes delivers superior retention compared to pure SMT types, reducing field failures from cable pulls and shock. The contact set implements USB 2.0 D+/D−, CC1/CC2 for orientation and power role detection, VBUS/GND power pins, and optional SBU pins for accessory modes; SuperSpeed pairs are not routed, simplifying PCB design and improving robustness. Gold‑plated contacts provide stable signal integrity and long mating life, while the housing uses UL94V‑0 thermoplastic. ESD shunting to chassis ground and optional EMI fingers help the port pass industrial EMC tests.
Key features:
- 16‑pin Type‑C receptacle, through‑hole mounting with heavy‑duty anchor posts
- USB 2.0 data (D+/D−), CC1/CC2, VBUS/GND; optional SBU pins
- Designed for high retention and vibration resistance; suitable for panelized enclosures
- Default current rating up to 3 A @ 5–20 V; optional 5 A high‑current versions
- 10,000+ mating cycles with hard gold plating; low contact resistance
- Multiple ground tabs for shielding and ESD; shell for chassis bonding
- UL94V‑0 housing; RoHS/REACH compliant; halogen‑free options
- Wave solder compatible; selective‑solder and hybrid SMT/TH variants available
- Fits 1.6 mm PCBs; alignment pegs and boardlocks for precise assembly
Typical specifications (verify per datasheet):
- Voltage: up to 20 VDC; Current: 3 A typical (5 A optional)
- Contact resistance: ≤30 mΩ (per contact); insulation ≥100 MΩ
- Dielectric withstand: 1000 VAC, 1 minute
- Mating cycles: 10,000 (typ.)
- Insertion/withdrawal force: per USB‑C spec
- Operating temperature: −40 to +85 °C (extended to +105 °C optional)
- Shielding: metal shell with ≥2 ground tabs; ESD path to chassis
- Solder process: wave/selective; peak 260 °C compatible
Applications:
- Industrial controllers and HMIs, PLCs, gateways, data loggers
- Rugged handhelds, diagnostic tools, field service equipment
- Charging/programming ports on automation, robotics, and test instruments
- Medical, transportation, and smart‑factory nodes requiring durable USB connectivity
Customization options:
- Contact plating thickness (gold), shell material and finish
- Extended‑temperature and high‑current (5 A) variants
- Optional dust cap/gasket, panel‑seal hardware; improved EMI fingers
- Pinout options (with/without SBU), number and style of ground tabs
- Mounting style: through‑hole only, hybrid SMT+TH, mid‑mount profile
- Packaging: tray, tape‑and‑reel; custom pick‑and‑place caps
