Product Specification
| Product Model | HX TS343BA |
| Rating: | DC 12V 50mA |
| Contact Resistance: | ≤100 mΩ |
| Insulation Resistance: | ≥100 mΩ |
| Withstand Voltage: | AC 250V 50HZ/1Min. |
| Operating Force: | 250±50gf |
| Stroke: | 0.18±0.10mm |
| Lifespan: | 50,000 Cycles |
| Temperature Range: | -25℃~+70℃ |
Product Description

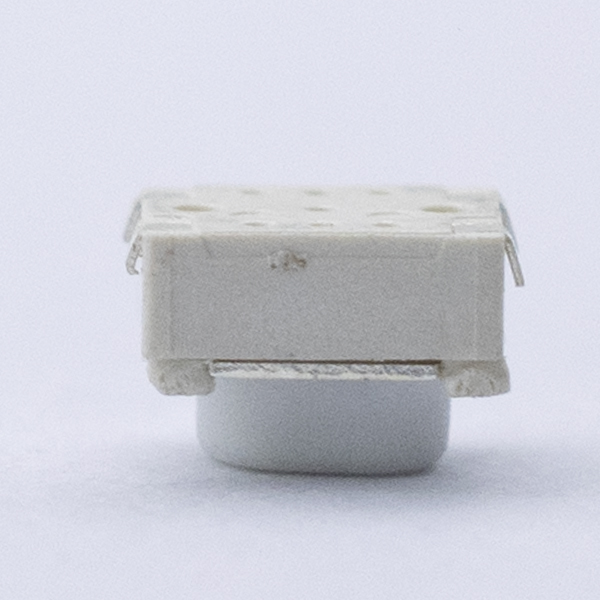

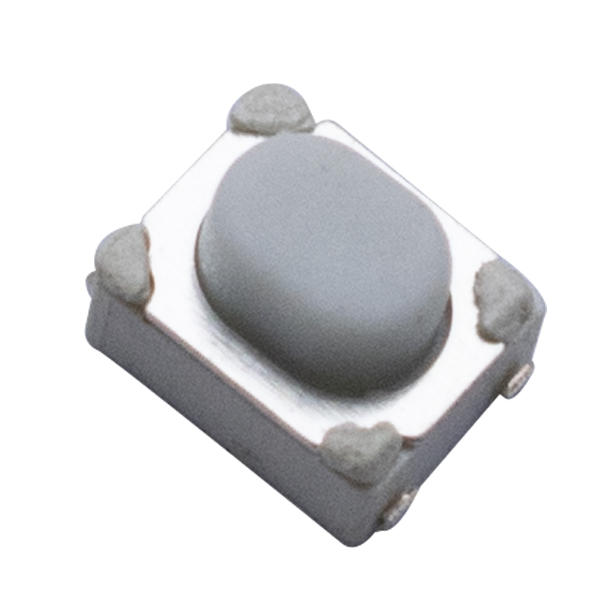

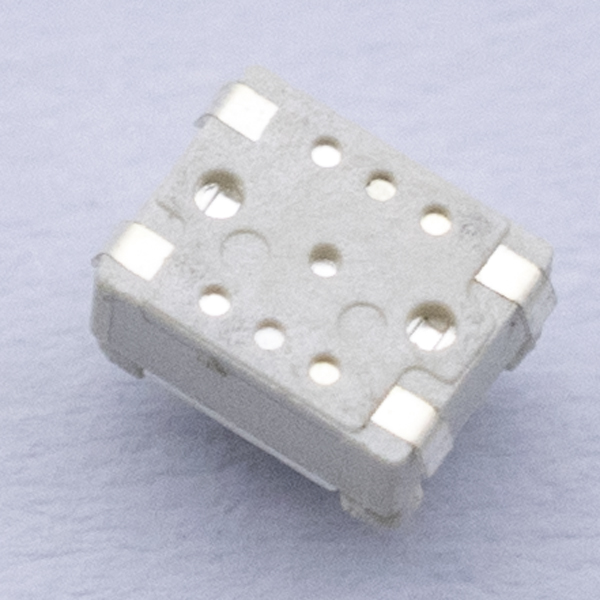

The Tactile Switch 3×4 for Smartphone HX TS343BA is a compact component designed for use in mobile devices where space efficiency and consistent input response are important. With a 3×4 mm footprint, it is suitable for applications such as power buttons, volume controls, and functional keys in smartphones and other portable electronics.
This switch offers clear tactile feedback that helps users identify each press. The actuation force and travel are engineered to provide a responsive feel, supporting comfortable operation in daily use. Its low-profile structure allows integration into slim device designs while maintaining mechanical integrity.
Features:
-
Dimensions: 3×4 mm for space-conscious layouts
-
Tactile Feedback: Provides a noticeable click feel for user confirmation
-
Contact Material: Corrosion-resistant metal contacts for stable performance
-
Low-Profile Housing: Suitable for slim smartphone assemblies
-
Actuation Force Options: Can be selected to match device requirements
Application Field
The tactile switch HX TS343BA can be applied in various electronic devices where compact size, tactile feedback, and consistent operation are required. Typical application fields include:
-
Smartphones & Mobile Devices – Power buttons, volume keys, and function controls
-
Wearable Electronics – Smartwatches, fitness trackers, and compact control units
-
Portable Consumer Electronics – MP3 players, handheld game consoles, and mini cameras
-
Communication Devices – Walkie-talkies, wireless headsets, and VoIP handsets
-
Smart Home Controllers – Remote controls, smart light switches, and IoT device panels
-
Medical Portable Devices – Handheld diagnostic tools and portable monitoring equipment
-
Industrial Handheld Terminals – Barcode scanners and portable data collection devices
The switch’s small footprint and tactile feel make it suitable for integration in designs that require both space efficiency and reliable user input.
