Product Description

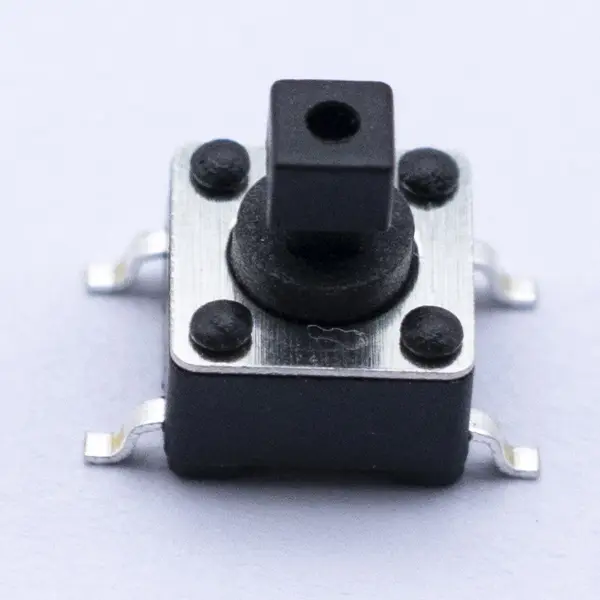

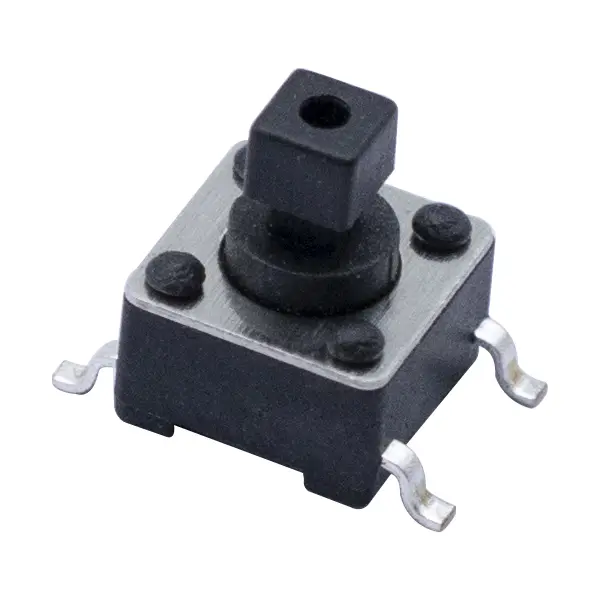

A compact, ultra-sensitive tactile switch engineered for high-density smart devices. The 6 x 6 mm footprint delivers precise, low-force actuation with a clean, crisp tactile feel and quiet operation. Ideal for wearables, handhelds, IoT modules, smart home controllers, and consumer electronics where light-touch input, reliability, and long life are essential.
Key Features
- Ultra-light actuation for effortless, responsive input
- Crisp tactile feedback with low acoustic click
- Compact 6.0 x 6.0 mm body for dense PCB layouts
- Multiple heights and actuation force options
- SMD and through-hole versions
- Long mechanical life with stable contact performance
- Low contact resistance and short bounce time
- RoHS and REACH compliant; halogen-free options
- Tape-and-reel packaging for automated assembly (SMD)
Typical Applications
- Smartwatches, fitness bands, and health trackers
- Smart remote controls and media controllers
- True wireless stereo charging cases and accessories
- Portable gaming controllers and handheld devices
- Smart home panels, thermostats, and IoT nodes
- Keypads, mode selectors, reset/input buttons on consumer devices
Technical Specifications
- Form factor: 6.0 x 6.0 mm square body
- Circuit: SPST-NO (single pole, single throw, normally open)
- Travel: 0.13 to 0.30 mm (typical 0.2 mm)
- Actuation force options: approximately 80, 120, 160, 260 gf
- Operating life: up to 500,000 actuations (variant-dependent)
- Electrical rating: 12 VDC, 50 mA (max) for signal-level switching
- Contact resistance: ≤100 mΩ (initial)
- Insulation resistance: ≥100 MΩ at 100 VDC
- Dielectric strength: 250 VAC for 1 minute
- Bounce time: ≤10 ms (typical)
- Operating temperature: -40°C to +85°C
- Storage temperature: -40°C to +85°C
- Mounting: SMD gull-wing or through-hole (4-pin)
- Sealing: standard open type; optional splash-resistant/sealed versions available
Materials and Finish
- Actuator: thermoplastic cap (optional), compatible with custom colors
- Cover/dome: stainless steel for consistent tactile profile
- Base housing: high-temperature thermoplastic (LCP or equivalent)
- Terminals: copper alloy with tin plating; gold-plated contacts available on request
Mechanical Options
- Heights (from PCB): common options include 4.3 mm, 5.0 mm, 7.0 mm, 8.0 mm, 9.5 mm
- Actuator styles: flat, extended, or with snap-on cap
- Force/tactile profile: soft-touch (ultra-sensitive), standard, firm-click variants
Reliability and Quality
- Stable tactile force over life with minimal drift
- Low wear contact system for consistent electrical performance
- Process-ready for SMT reflow; high-temperature plastics minimize deformation
- 100% electrical test and visual inspection per lot (availability depends on program)
Compliance and Safety
- RoHS compliant, lead-free
- REACH compliant
- Halogen-free versions available
- UL94 V-0 housing materials available on certain variants
Packaging and Logistics
- SMD: tape-and-reel for automated pick-and-place (common reel counts: 2,000–4,000 pcs/reel)
- Through-hole: bulk bag or tube packaging
- Moisture sensitivity: MSL typically not applicable or low; ship in protective packaging
- Labeling: part number, lot/date code, quantity
Recommended Use and Assembly Notes
- SMD reflow: follow manufacturer’s reflow profile; avoid excessive peak temperatures to protect tactile performance
- Hand soldering (TH): keep dwell time short and tip temperature controlled to prevent housing damage
- Keep off mechanical load during reflow; do not press actuator until cooled
- For outdoor or high-humidity use, select sealed variants and implement appropriate gaskets on enclosures
- Debounce in firmware if required for ultra-sensitive configurations
Customization
- Tailored actuation force and travel
- Custom heights and actuator caps
- Gold-plated contacts for low-level signal applications
- Sealed construction for enhanced dust/moisture resistance
- Branding and color options for visible actuator caps
Ordering Information
- Specify mounting type (SMD or TH), height, actuation force, and finish
- Example description: 6x6 SMD, 5.0 mm height, 120 gf, tin-plated terminals
- Contact sales for detailed datasheet, recommended PCB footprint, and part numbering
