Product Specification
| Series | DC Socket |
| Model | HX DC003A |
| 1.Operating Conditions | -30~70℃ |
| 2.Rated Load | DC30V 0.5A |
| 3.Contact Resistance | ≤0.03Ω |
| 4.Insulation Resistance | ≥100MΩ |
| 5.Withstand Voltage | AC500V(50Hz)/min |
| 6 Insertion And Extraction Force | 3~20N |
| 7.Life | 5000 times |
Product Description

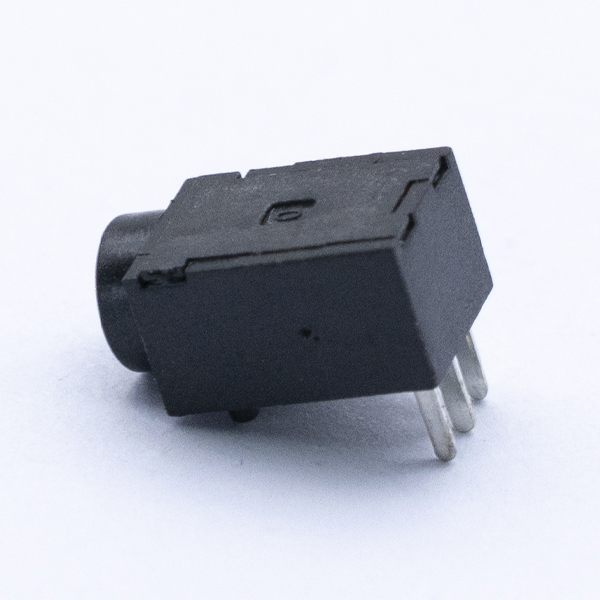

DC Power Port For Laptop and Router HX DC003A is a high-performance DC socket designed for portable devices and networking equipment. With a wide operating temperature range of -30℃ to 70℃, it ensures reliable performance even in harsh environments. The rated load of DC30V 0.5A makes it suitable for most consumer electronics. Engineered with low contact resistance (≤0.03Ω), it offers stable current transmission, reduced energy loss, and minimal heat generation. The socket also features excellent insulation resistance (≥100MΩ) and can withstand AC500V at 50Hz for one minute, providing enhanced safety and protection against electrical leakage or short circuits.
DC Power Port For Laptop and Router HX DC003A is built for both durability and ease of use, with an insertion and extraction force of 3–20N that balances secure connection and user comfort. Tested for up to 5,000 mating cycles, it is ideal for frequent-use applications such as laptops, routers, and mobile terminals. The compact form factor supports flexible installation in space-constrained PCBs, making it a reliable solution for manufacturers. Combining mechanical strength with electrical safety, the HX DC003A is a trusted DC power interface for long-term, stable device operation.
Materials:
- Base: PA engineering plastics
- Bent Piece: 65 manganese steel strip
- Pin: H62 brass strip
- Reed: H62 brass strip
- Cover: PA engineering plastics
Application Field
DC Power Port For Laptop and Router HX DC003A is widely used across various electronic devices that require a compact, stable, and durable DC power connection. Its high reliability and broad compatibility make it an ideal choice in both consumer electronics and industrial applications.
-
Laptops and Notebooks
Provides a secure and consistent DC power input for portable computers, supporting long-term use and repeated plugging. -
Routers and Networking Devices
Ensures stable power delivery for wireless routers, modems, and signal repeaters, enhancing internet stability and device lifespan. -
Tablets and Portable Displays
Suitable for compact electronics where space-saving DC connectors are essential for slim product designs. -
Communication Equipment
Applied in two-way radios, handheld transceivers, and other communication tools that require reliable low-voltage power input. -
Embedded Systems and Development Boards
Ideal for Arduino, Raspberry Pi, and other embedded devices where secure and repeatable power connections are needed during prototyping or deployment. -
Home Automation and IoT Devices
Used in smart home controllers, hubs, and sensors requiring compact, efficient DC power jacks.
With its robust electrical and mechanical performance, HX DC003A meets the demanding requirements of modern electronics, offering a dependable power interface across a wide range of devices and environments.
