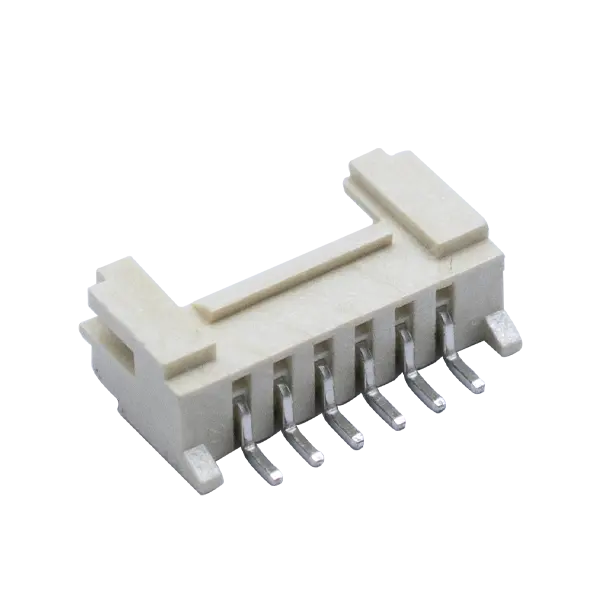

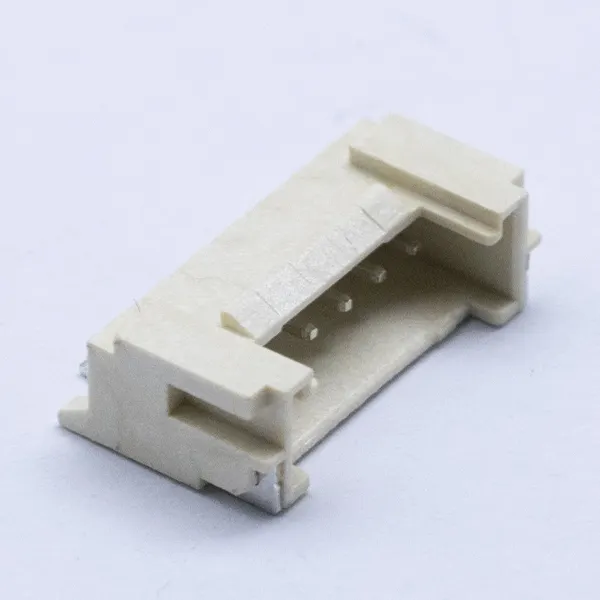

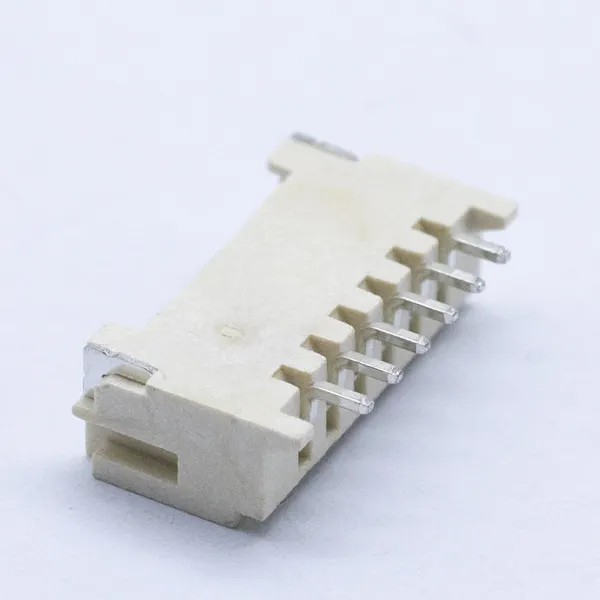

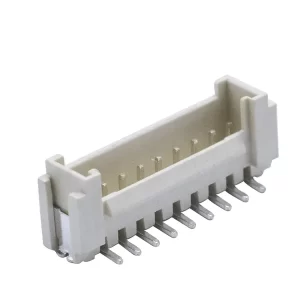

PH2.0 Wire To Board Plug Connector

Model No.:HX 2.0-9P LTDK

In stock, shipped directly

Advantages:

2.0 mm pitch –suitable for high-density PCB layout
Initial contact resistance ≤10 mΩ –≤20 mΩ after environmental testing; withstand voltage up to 800 VAC
Suitable for small electronic devices, portable devices, robots, drones, IoT equipment, and consumer electronics

The PH2.0 wire-to-board connector is a compact 2.0 mm pitch connector designed to reliably connect cable assemblies to PCBs in tight spaces. It features polarized keying and friction-fit retention for smooth mating and resistance to accidental unplugging. Typical applications include consumer electronics, smart home devices, lighting, instrumentation, and small motor control.

Key Features

2.0 mm small-pitch design for space-constrained layouts
Polarized keying and friction retention to prevent mis-mating and improve assembly reliability
Multiple PCB mounting options: vertical/right-angle, through-hole (THT) or surface-mount (SMT)
Terminal plating options: tin or selective gold for a balance of cost and conductivity
High-temperature nylon housing (PA66/PBT), flammability rating up to UL94 V-0
Compatible with common PH2.0 ecosystem terminals and headers for rapid harness solutions

Typical Specifications (may vary by supplier/series)

Positions: 2–12 pins (more pins customizable)
Rated current: up to 2 A per pin (depends on wire gauge and temperature rise)
Rated voltage: up to 100 V AC/DC
Contact resistance: ≤20 mΩ (typical)
Insulation resistance: ≥1000 MΩ (typical)
Dielectric withstanding voltage: 800–1000 VAC for 1 minute (typical)
Operating temperature: -25 °C to +85 °C
Suitable wire gauge: AWG 28–24 (approx. 0.08–0.2 mm²)
Mating cycles: ≥50 (typical)

Materials and Finishes

Terminals: phosphor bronze or brass, tin plating (selective gold optional)
Housing: PA66 or PBT, commonly white/natural (custom colors available)

Mounting and Mating Parts

PCB side: vertical or right-angle headers, THT or SMT packages
Cable side: crimp terminals + plug housings (pre-terminated wire harnesses available)
Packaging: bag or tray; SMT versions available in tape-and-reel

Compliance and Quality

RoHS and REACH compliant
Incoming inspection reports and dimensional drawings available; supports sample validation

Ordering Information (example)

Specify: pitch / pin count / mounting style / terminal plating / housing color
Example: PH2.0-4P-THT-RA-Tin-Natural = 2.0 mm pitch, 4 pins, through-hole right-angle, tin-plated terminals, natural housing
