Product Specification
| Series | Headphone-Jack |
| Model | HX PJ-393 |
| 1.Rated Electrical Load | 30V 0.5A |
| 2. Contact Resistance: | ≤0.03Ω |
| 3. Insulation Resistance: | ≥100MΩ |
| 4.Pressure Resistance: | AC500V(50Hz)/min |
| 5.Insertion And Extraction Force | 3~20N |
| 6.Life: | 5000times |
Product Description

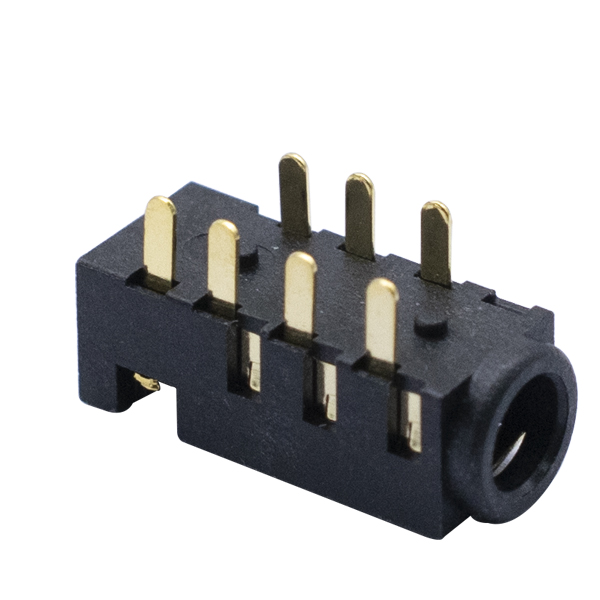

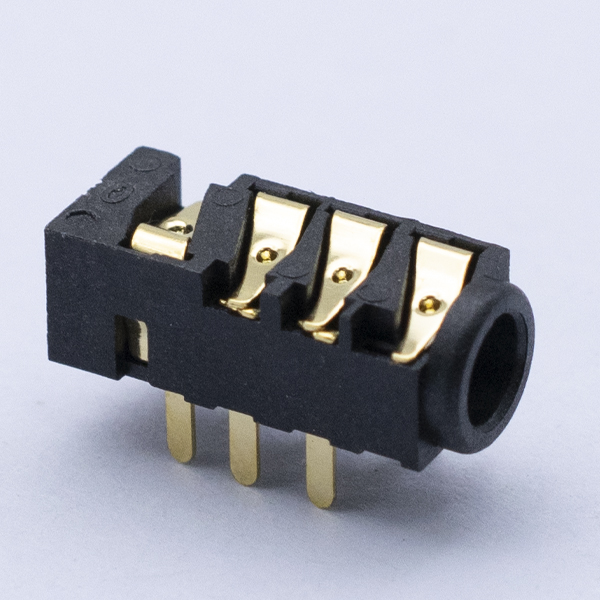

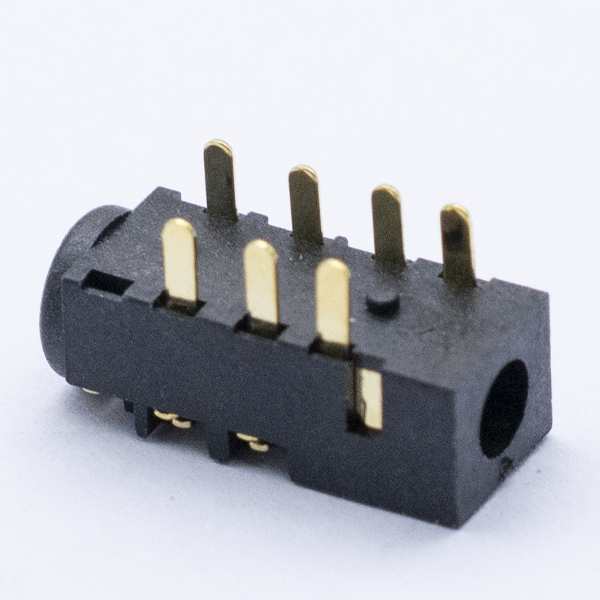

3.5MM Stereo Audio Jack For Audio Field HX PJ-393 is engineered for high-reliability audio connections. With low contact resistance (≤30mΩ), high insulation resistance (≥100MΩ), and excellent dielectric strength (AC 500V/min), it ensures stable and noise-free signal transmission. The jack supports over 5000 mating cycles with consistent insertion and removal force (3–20N), making it ideal for frequent-use applications.
Designed for durability, HX PJ-393 performs reliably in extreme environments ranging from -30°C to +70°C. It passes humidity, heat, cold, and thermal shock tests without performance loss. With strong terminal integrity and excellent solderability (≥75% wetting area), it supports both reflow and hand soldering processes. This audio jack is a robust solution for modern audio devices requiring long-term stability and performance.
Materials:
- Practical Temperature Range：-30~70℃
- Base：PBT
- Cover：PC
- Bushing: H59 Brass Rod
- Spring: Ⅱ Carbon Spring Steel Wire
- Contact Pin: H62(Y) Brass Strip
Application Field
The HX PJ-393 3.5mm stereo audio jack is designed for high-performance, compact, and reliable audio connectivity. With excellent electrical properties, long mechanical life, and strong environmental adaptability, it meets the demanding requirements of both consumer and professional applications.
-
Consumer Electronics
Widely used in headphones, earphones, portable music players, game controllers, and smart speakers for clear and stable audio transmission. -
Mobile and Computing Devices
Suitable for smartphones, tablets, laptops, and desktop computers as audio input/output ports, enabling compatibility with various accessories. -
Multimedia and AV Equipment
Applied in televisions, projectors, set-top boxes, and sound systems to deliver high-quality audio connections. -
Automotive Electronics
Integrated into in-car entertainment systems, dashboard audio ports, and rear-seat media units, offering durable and vibration-resistant performance. -
Medical and Industrial Devices
Used in diagnostic equipment, patient monitors, and testing instruments requiring secure and precise audio or signal connections.
Thanks to its rugged structure, excellent solderability, and reliable electrical performance, the HX PJ-393 is a versatile audio connector trusted across multiple industries.
