Product Description
Heavy‑duty metal‑threaded DC power connector designed for shell machines and industrial enclosures. The machined metal body with a threaded bushing and locknut provides secure, anti‑vibration panel mounting and stable DC input. Robust, plated copper‑alloy contacts deliver low contact resistance and reliable power transfer. Optional sealing washer/gasket helps resist dust and splashes in factory environments. Available in common barrel sizes and as panel‑mount jacks with matching cable plugs to suit different power needs.
Key features and specifications:
- Form factor: DC barrel connector; multiple inner/outer diameter options available (select per design)
- Electrical rating: typically 12–48 V DC; up to 5–8 A depending on size/model

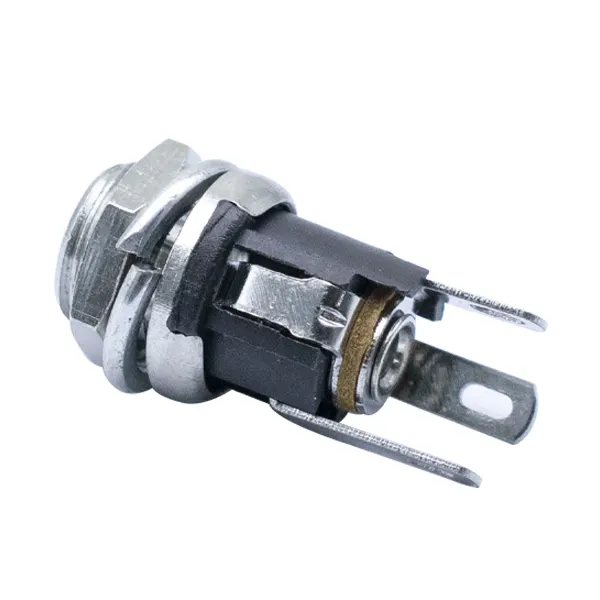

- Mounting: panel‑mount with metal threaded bushing, locknut, and washer; resists vibration/loosening

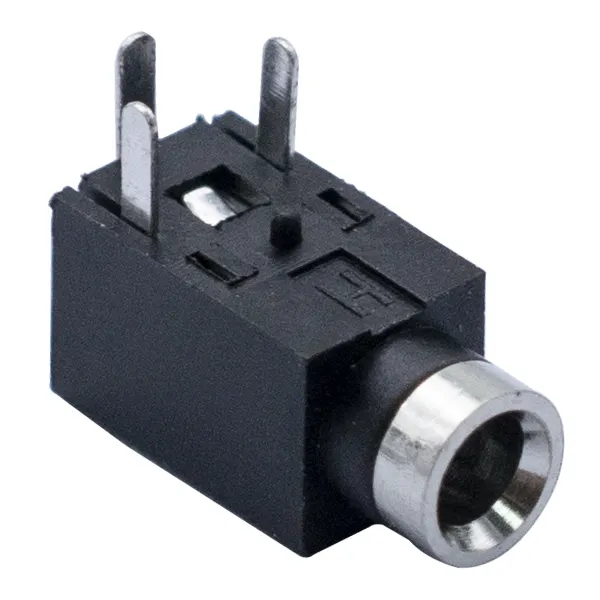

- Termination: solder lugs, PCB through‑hole, or screw terminal options (model‑dependent)
- Materials: stainless steel or nickel‑plated brass shell; copper‑alloy contacts; insulating bushing (PA66/PBT), UL94 V‑0
- Durability: ≥5,000 mating cycles; stable retention force and low contact resistance
- Environmental: −25 to +85 °C; optional O‑ring/washer for enhanced dust/splash protection
- Polarity: center‑positive typical (verify application and wiring)
- Compliance: RoHS and REACH
Applications:
Shell machines, metalworking equipment, automation cabinets, kiosks, vending systems, access control, LED drivers, CCTV, and test instruments.
Notes:
Confirm barrel size, thread specification, panel cutout, and exact current/voltage ratings for the selected model before design‑in.
