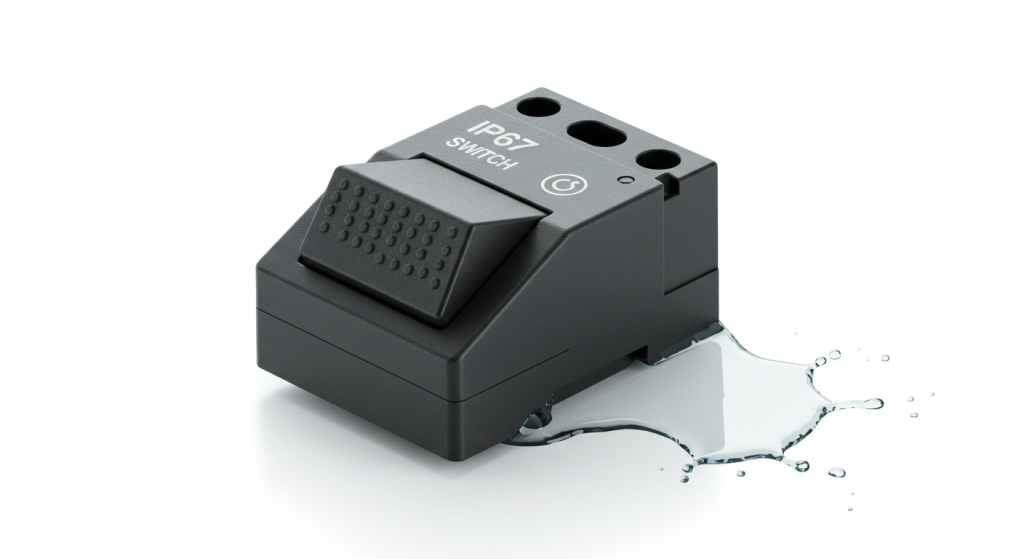

IP67 Tact Switch – Waterproof & Dustproof Sealed Push Button

The Complete Guide to IP67 Tact Switches

According to the electronic parts industry, switches are minute but have one of the most important roles in the process of ensuring devices are made to work effectively. When you are pressing the power button of a smartphone, clicking a control panel on a machine, or a device changing a car dashboard setting, and make this feel this way, it is achieved with a device called a tact switch.

The capability to retain its waterproof and dustproof characteristics made the IP67 tact switch the most dependable in the contemporary era of electronics, thus this tact switch gained utmost relevance in the flock of models currently available in the market.

What is an IP67 Tact Switch?

An IP67 tact is a sealed tactile push button switch to exclude dust and water. The name IP67 is based on the Ingress Protection (IP) standard as defined by the IEC 60529 system: The enclosure states the degree of solid and liquid ingress protection.

• IP = Ingress Protection
• 6 = Dust-tight; entry of dust prevented.
• 7 = Protection against immersion in water up to 1 meter for 30 minutes

To put it in simple terms, an IP67 tact switch is dustproof and waterproof and, thus, may be used in such locations in case of electronic equipment that can be used in areas that can be wet, dirty, or exposed to harsh weather conditions.

The IP67 rated switch is also very durable even in outdoor, automotive, or industrial environments compared to the normal tactile switches, which can be prone to corrosion or failures whenever they are used in harsh environments.

Tact Switch 12×12 2pin EHT HX TS128B2J – Winner of IP67 Tact Switch

Tact Switch 12×12 2pin Electric HX TS128B2J is one of the most reliable and durable IP67 tact switch nowadays. This substitution is propelled by a high degree of engineering, which makes this product not only mechanically stable but also electrically stable, and that is the reason it can be integrated within competitive electronic applications. It is quite small (12x12mm) and thus can fit into a small area between the devices, and its operation will not be affected.

Key Advantages

• Accurate Feedbac- Offers crisp, tactile response for precise user control.
• Long Life Build- This is built to be durable with low performance degradation due to high actuation.
• Compact Size- Fits seamlessly into small circuit board spaces.
• Simple Installation- Easy and quick mounting can be installed.
• Versatile Applications- Suitable for a wide range of electronic devices and projects.

Technical Specifications

The HX TS128B2J sealed tactile push button switch is manufactured using quality material that will last:

• Base Material: High-grade PPA plastic that is both heat-resistant and of high mechanical strength.
• Cover: This is a copper-tin-plated, strong iron cover that corrodes and wears.
• Spring: Stainless steel spring delivers consistent actuation for over 50,000 cycles.
• Terminals: Copper terminals are silver-plated, and they are good in terms of the conductivity of electricity.
• 50mA/Low Volt: DC 12V/125 V, low voltage.
• Contact Resistance: Low contact resistance is a definite electrical performance.
• Operating Temperature: Wide temperature range.

Applications

It is a waterproof, dustproof Tactile IP67 switch applicable in industrial controls, consumer electronics, Internet of Things, and auto systems. The fact that it is small in size, rigid, and closed in design ensures that it provides the best fit to engineers and manufacturers seeking to have a reliable electronic PCB tact switch.

Technical Construction of IP67 Tact Switches

As one learns about the construction of these switches, it is not hard to say why one can say that they are so tough. The following items might be used to create a tactile switch (IP67):

• Actuator (Button Cap):

The ergonomic part that users press. It is either flat or round, or can be in the form of a design of customized design, depending on the use of the design.

• Sealing Membrane:

 Any protective coating or a silicone rubber that is contracted to make sure no water or dust reaches the switch housing.

• Contacts:

 They tend to be low-resisting, plating of copper alloy or silver.

• Housing:

 Coats the inside surfaces and is usually made out of high-strength plastic or resin materials that are environmentally resistant.

• Terminals:

 Available in through-hole (THT) or surface-mount device (SMD) options for PCB assembly.

Benefits of IP67-Rated Tact Switches Use

Why are manufacturers and engineers opting to use IP67 switches as opposed to ordinary switches? Let’s explore the benefits:

• Reliability: With superior sealing, these switches last longer even under adverse conditions.
• Versatility: Suitable for both indoor and outdoor devices.
• Safety: avoids the occurrence of electrical failures through the existence of moisture or dust.
• Maintenance-Free: Reduces downtime and costs in industrial systems.
• Improved User Interface: good sense, makes equipment easier to touch.

Buyer Guide: How to Purchase the Correct IP67 Tact Switch

When purchasing an IP67 switch, the engineers/buyers should take into consideration the following:

• Travel Distance:

This is the feature in the movement of the actuator before the circuit is switched in.

• Current & Voltage Ratings:

Ensure compatibility with your circuit specifications.

• Environmental Requirement:

Check the temperature operating range and vibration resistance.

• Supplier Reliability:

You must only use a reputable IP67 tact switch supplier or distributor, such as Good Lockers, to ensure that you can be assured of getting original high-quality parts.

Conclusion

The IP67 tact switch is not a simple electronic piece, but the eye-opener to the reliability and stability of hundreds and thousands of devices. Its dustproof and waterproof capabilities and its longer working hours, flexibility, and miniature size have been the favorite of the automotive, industrial, medical, and consumer electronics. Are you searching for a good supplier of these parts to buy them from? Visit Hanxia. You need a bulk of IP67 tactile switches, new specifications, or simply professional guidance, then we are there to ensure that your project will prosper with the appropriate parts.
