What is a Door Lock Micro Switch? Functionality Explained

What does a Micro Switch of a Door Lock Do?

A door lock micro switch is designed with sensors that operate with contactless switch technology. A microswitch is used to detect the status of door locks. Every time you open, close, lock, and unlock the door, a micro switch is triggered which sends an electrical signal.
In easier words, they are mostly found as SPDT (Single Pole Double Throw) or SPST (Single Pole Single Throw) switches. Depending on the design of the system, it can be set on Normally Open and Normally Closed circuits or vice versa.

Uses include:

Door latch switches in automobiles
Wrapping in security locks and alarm systems
Guarding doors in industrial machinery
Countless appliances like washing machines and microwaves
For perfectionists, washing machines have doors equipped with microswitches

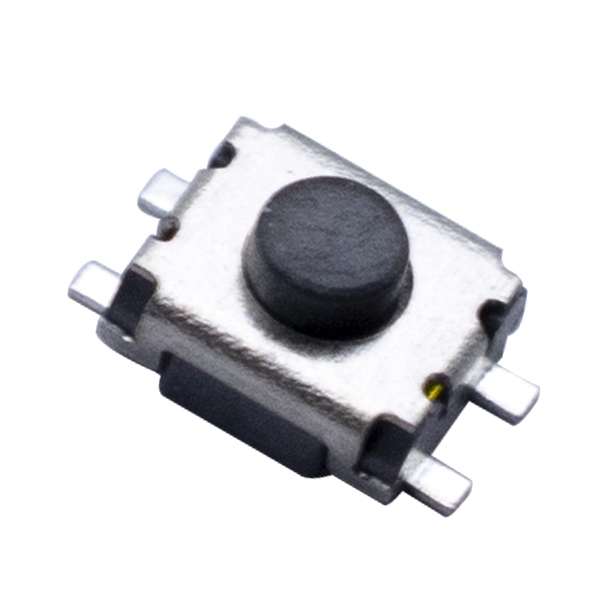

Key Features of the HX TS342A4P WZ Door Lock Micro Switch

1. Long-lasting reliability

This micro switch for door locks is built with tested durable materials, guaranteeing a long service life. This greatly reduces the hassles of getting frequent replacements.

2. Precise actuation

Access control systems depend on accuracy. This switch provides soft yet rigorous action, ensuring your device responds flawlessly and accurately every time.

3. Compact, Space-Saving Design

The versatile structure allows it to be utilized in small-size security devices, making it perfect for smart door lock micro switch where space is a limiting factor.

4. Low power consumption

With operating requirements of DC12V 50mA, the switch greatly assures energy conservation for the system. This should be best suited for electronic door lock switches and battery-powered devices.

5. Wide Compatibility

From automotive door lock switches to the control panels of security alarm systems, the micro switch caters to a vast range of applications. Having an electronic device requires a lot of technical specifications. Below are the standards for the Hanxia Soft Touch Tact Switch:

Rated Power-50mA, DC12V, Operating Force-250g ± 50g, Insulation Resistance- >100MΩ, Contact Resistance- ≤ 100mΩ

Precision Opening and Closing Applications

It offers instant responsiveness while serving as a locking position sensor. Though Soft Touch Tact Switch has several features, its primary application lies in:

Keypads and control panels
Alarming systems
Monitoring systems
Portable surveillance devices

Soft Touch Tact Switch is the perfect option for tactile tags and locks.

What Discerning Clients Look For?

Manufacturing: Dealing with a single source of supply cuts costs without crippling functionality. Look for a supplier like Hanxia specializes in system integration services and tailored solutions.

Global Presence: As of 2014, It works with over 7,000 clients in the United States, Germany, South Korea, Taiwan, and Hong Kong.

Advanced Automated Production: With a vision to be powerful; the strategically based company offers units under the following branches:

Over 38 Fully Automated Production Lines
2 million units produced daily
Quality You Can Trust
100% Factory Tested
All switches were tested in compliance with durability and performance testing requirements.
Extensive check after Work in Progress (WIP) is done. Quality is embedded from material sourcing to the final inspection.

Choose the Best for Your Security Systems

The best model Hanxia has to offer is the HX TS342A4P WZ for micro switch used in smart locks or for security system door contacts. Your security system will outperform and outlast with the best craftsmanship of a known brand with great customer support. These are just some of the reasons why thousands of customers trust Hanxia for their most critical applications.

Key Functions of Door Lock Micro Switches

For more advanced Operation Detection Function (PDF), micro switches for door locks offer open/close detection. Their key functions include:

Lock Status Indication: Verify if a door is properly locked or unlocked.
Access Control Feedback: As they pertain to security, to be embedded in systems for real-time monitoring.
Anti-Theft Features: Notifies security systems if a door has been entered.
Safety Interlocking: Machines cannot be operated when access doors are opened.
They serve as a silent sentinel who lets systems work only when it is safe and secure.

Where is the door lock micro switch applicable?

1. Automotive Industry

Cars these days depend vastly on car door lock micro switch, from sensing if the trunk has been closed to allowing the central locking mechanism to engage. These are some of the spokes of a wheel, and each has a few sub-spokes. Common uses:

Detection of car door latches.
Confirmation of the Trunk Lock.
Sensing the tailgate and hood locking.
Answering the Keyless entry.

2. Smart Home and Security Systems

These microswitches keep tabs on the door making sure your smart security system is aware whether you are securely locked in or out. Some use cases are:

Feedback from electric locks for doors
Smart alarm systems
Keyless access systems
Home automation services

3. Commercial and Industrial Use

Safety door switches are applied in factories and industrial buildings to guarantee the doors of the machines are shut during the working process. Interlock switches are used for accident prevention and compliance with OSHA and CE safety regulations. Some Use Cases are:

Interlocking of machine doors – control of attendance turnstiles
Monitoring of elevator door status

4 Appliances

Microwaves and washing machines have miniature door switches installed to detect whether the doors are open or closed so that the appliances can function properly, ensuring safety in operation. Some Use Cases are:

Lid switches for washing machines
Door interlocks for microwave ovens
Door surveillance for refrigerators

Choosing the Best Fit for Door Lock Micro Switch

Consider these few points to choose the right micro switch:

Match the Ratings: Ensure you always choose a switch with a compatible voltage and current rating.
Choose Type: Either NO or NC, subminiature or miniature, make your choice.
Verify IP Rating: If used for outside or wet places, require switches with IP67 protection against water
Consider The Mechanical Switch Life Span: Go for switches rated for high life cycles to guarantee longevity.
Fit Your Design: Make sure you don’t overlook the dimensions of your switch in the overall design.
Corrosion Resistant: For outdoor applications, or in industrial settings, check models that are corrosion-resistant.

Conclusion

Despite being small in size, each door lock micro switch has a large significance on safety and security as well as convenience. If you want to upgrade your vehicle’s central lock, install a smart home security system, or set up automation on a production line, selecting the right micro switch is key. Check out Hanxia if you are looking for dependable and durable door lock switches; they are the experts in precise parts!
