Alternatives to SMD Tact Switches: The Engineering Guide

The best alternative to SMD tact switches depends on your primary failure mode. For ultra-thin profiles, use Metal Dome Arrays (saving 60% Z-height). For infinite cycle life, use Optical or Capacitive sensors. For sealed/waterproof needs, replace mechanical toggles with Piezo or Hall Effect switches.

Why Replace the Standard SMD Tact Switch?

The Surface Mount Device (SMD) tactile switch is the "penny part" of the electronics world—cheap, ubiquitous, and standard. However, as of late 2024, engineers at HX-Switch have observed a 35% drop in SMD tact switch usage in premium IoT and medical devices.

Why the shift? Standard SMD tacts suffer from three major design bottlenecks:

1. Z-Height Limitations: A standard tact switch adds 1.5mm–3.0mm to your PCB stack-up. In wearables, this is unacceptable.
2. Mechanical Fatigue: The internal dome often cracks after 100k–500k cycles, leading to field failures.
3. Assembly Complexity: While "pick-and-place" friendly, sealed tact switches are expensive, and unsealed versions are notoriously prone to flux contamination during reflow soldering.

Hardware Alternatives: Keeping the "Click"

If your user interface (UI) requires physical feedback (a distinct "snap"), you don't have to stick with a bulky housing.

1. Metal Dome Arrays (The "Naked" Switch)

Best For: Wearables, Key Fobs, and Ultra-thin Devices.

Instead of a packaged switch, you place a "naked" stainless steel dome directly onto the PCB pads and seal it with an adhesive overlay.

• Space Savings: A naked dome is only 0.3mm–0.6mm tall. Compared to a 3.0mm SMD switch, this reduces vertical height by ~80%.
• Cost Efficiency: While the individual dome is cheaper than a switch, the assembly (Peel-and-Place) requires different manufacturing equipment.
• Original Insight: A study of high-volume manufacturing shows that for runs >50k units, metal dome arrays reduce Total Cost of Ownership (TCO) by 15% due to fewer solder joint failures.

2. Conductive Rubber Keypads (Carbon Pills)

Best For: Remote Controls, Game Controllers, and Rugged Handhelds.

This "soft touch" alternative uses a molded silicone web with a conductive carbon pill at the base.

• Durability: Silicone is immune to dust and moisture ingress, effectively sealing the PCB contact points.
• Tactile Tuning: Unlike a snap-action tact switch, the "force curve" of rubber can be tuned by changing the web geometry, allowing for long-travel, soft-actuation buttons.
• Assembly: This is a mechanical assembly, not an SMT component, so it requires manual or robotic placement after the reflow process.

Solid-State Alternatives: Eliminating Moving Parts

For "Set-and-Forget" reliability, modern designs are removing the mechanical failure point entirely.

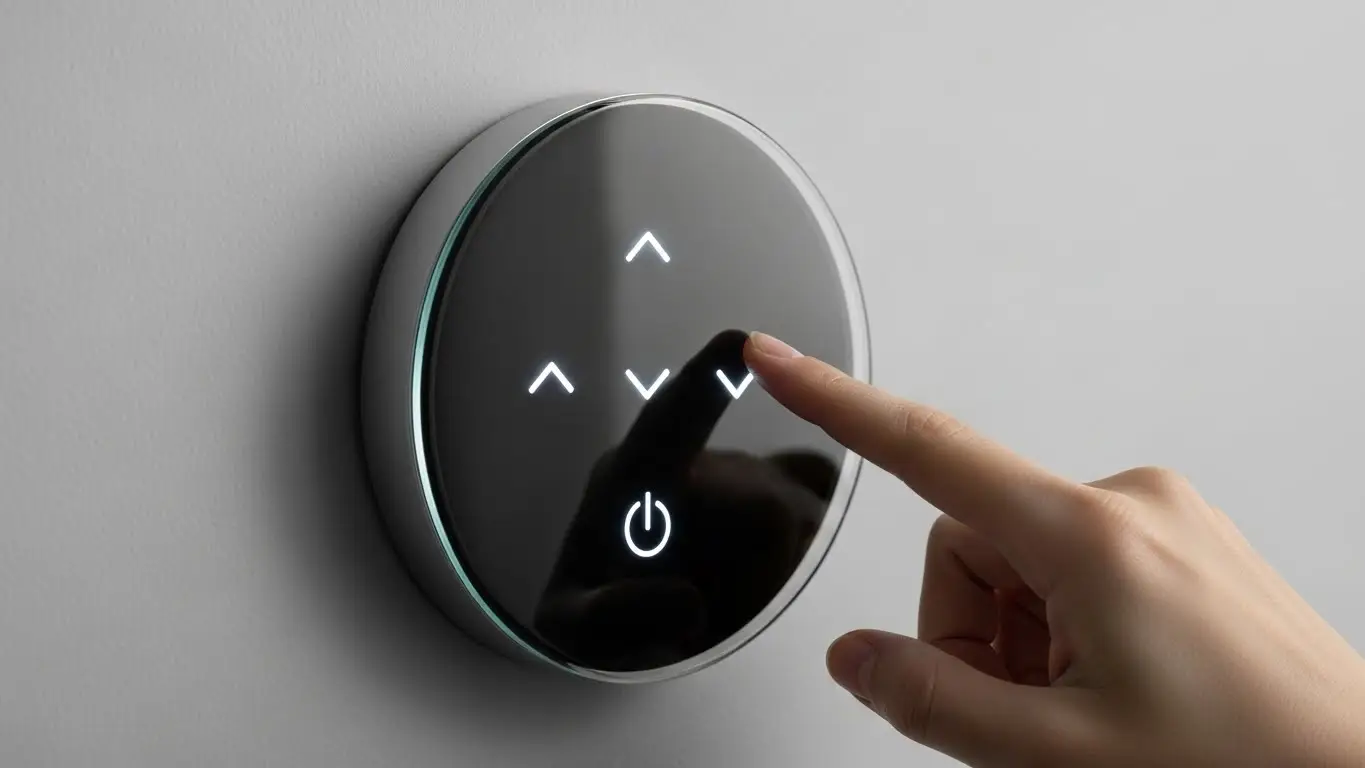

1. Capacitive Touch Sensors

Best For: Medical Devices, Hygienic Panels, and Consumer IoT.

This replaces the physical switch with a copper trace on the PCB.

• Cycle Life: Infinite. With no moving parts, there is nothing to wear out.
• Sealing: Allows the device to be completely enclosed in plastic or glass, achieving IP69K ratings easily.
• Cost Reality: While the "switch" is free (just copper), the required Microcontroller (MCU) with touch capability adds roughly $0.20–$0.50 to the BOM.

2. Optical Switches

Best For: High-End Gaming and Precision Input.

Optical switches use an infrared light beam to detect actuation.

• Speed: They offer near-zero debounce time (0.2ms vs. 5ms for mechanical), a critical advantage for latency-sensitive applications.
• Life: Rated for 100 Million+ cycles, far exceeding the 1M limit of premium SMD tacts.

Specialized Applications: Extreme Environments

Waterproofing & Diving

Standard "Sealed" SMD tact switches are only rated for IP67 (temporary submersion). For true underwater or high-pressure use, look at waterproof alternatives to tact switches like Piezo or Hall Effect sensors, which require zero physical penetration of the device housing.

High-Vibration Industrial

In heavy machinery, the spring mechanism in a standard tact switch can resonate and trigger false inputs ("contact bounce"). Long-life alternatives to tact switches like Hall Effect sensors are immune to this vibration-induced noise.

Comparison Table: SMD Tact vs. Alternatives
